Using seabed bathymetry to image inversion structures in the offshore Wessex Basin

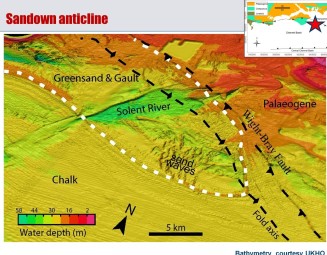

Sandown anticlineHigh resolution bathymetry is used to unravel the development of a Mesozoic basin on the UK continental shelf. The basin lies just south of the Isle of Wight – a classic area of English geology – where spectacular cliff exposures of near-vertical rocks are evidence of the same compressive forces that formed the Alps. The offshore structures are seen in remarkable clarity as strong tides in the English Channel sweep away loose sediments that would otherwise mask them. The new data shows folding and faulting of the rock layers with unprecedented detail. The images are best where the geological layers are steeply dipping, and so compliments the traditional seismic method of determining off-shore structure. The work shows that as the basin was squeezed during the Alpine compression, soft, thinly bedded rocks were extruded out towards the sides of the basin, whereas stronger, thicker bedded rocks were folded into more open structures. The work therefore emphasizes the importance of the mechanical properties of the basin fill in controlling its later development.

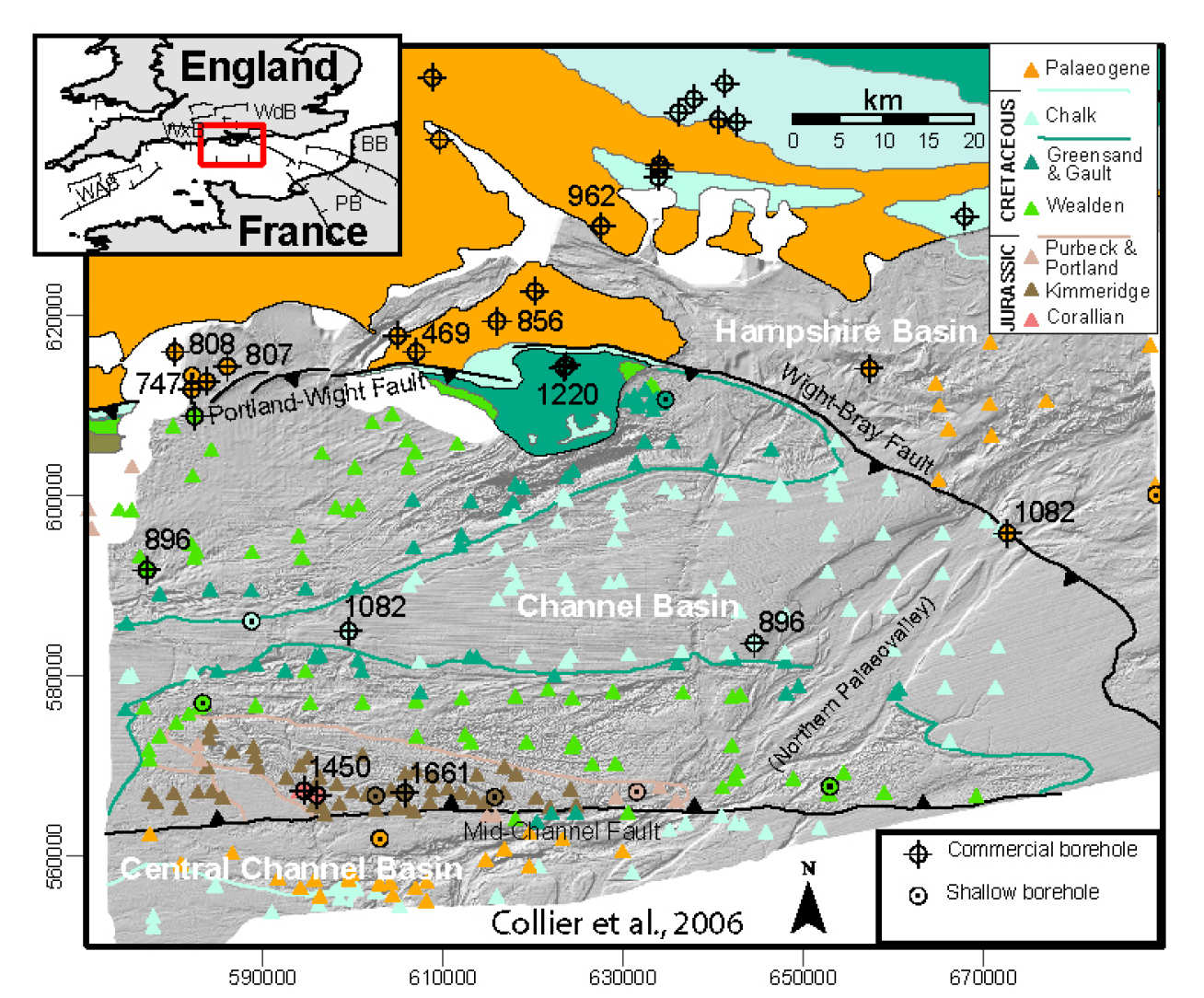

Map of isle of wight regionMapping of inversion structures south of the Isle of Wight from offshore bathymetry (shaded grey backdrop) combined with existing core, borehole and seismic (curtesy Jebco Seismic UK LTD and its current owner IHS Energy). This study was the first to demonstrate the use of bathymetry to interpret geological structures on the seabed of the UK continental shelf.


Collier, J.S., S. Gupta, G. Potter, A. Palmer-Felgate  2006. Using seabed bathymetry to indentify inversion stuructures on the English Channel shelf,  Geology, Vol. 34, 1001-1004. PDF
