Recovery of Metals from Wastes and Effluents
Electrochemical processes offer elegant, environmentally-benign, energy-efficient engineering solutions for metal recovery from industrial effluents and wastes. Electrical energy is used to effect the required chemical change(s) by oxidation reactions at anodes and reduction reactions at cathodes.
The Electrochemical Engineering research group has extensive experience of the electrochemical science and engineering required to develop recovery and recycling processes for metals from industrial effluents[i],[ii],[iii] and end-of-life materials, such as waste electrical and electronic equipment (WEEE) [iv],[v],[vi],[vii],[viii],[ix],[x],[xi] and spent catalysts[xii],[xiii]. The feasibility of (near-) closed loop processes have been demonstrated using aqueous solutions containing chloride and iodide. A current project is extending these electrolytes to ionic liquids.
WEEE was shredded and if necessary ground to liberate encapsulated metals; as the mechanical energy requirement increases sharply with decreasing particle sizes below ca. micrometres, optimisation of the liberated metal value is required with respect to the energy input. The resulting particles were dissolved in coupled leach and electrochemical reactors (Fig.1); chlorine was generated by reaction (4) to effect non-selective dissolution of metallic components by reaction (1), with simultaneous selective or non-selective electrodeposition by reaction (2). The fluid phases were operated in closed loop with recycle of the electrolyte solution, so the overall process involved inputting electrical energy to move the metals from waste to cathode (reaction (5)) and, in principle, additionally produced only de-metallised material (polymer and glass), for further processing.
With multi-metallic wastes, control of electrode potential may be used to deposit metals selectively, or alloy deposits can be electrorefined subsequently to achieve the required purity for recycling (e.g. commercial purity copper ³ 99.99 %). Mathematical models enable process options and optimal strategies (selective vs. non-selective dissolution, simultaneous or sequential electrodeposition) to be explored depending on the properties of particular wastes, and enable rational reactor and process design to minimise dissolution times, maximise charge yields, and optimise specific electrical energy consumptions and overall process energy requirements (ca. 0.4 MW h (tonne Au)-1; 2 MW h (tonne Cu)-1 etc.) and (capital + running) costs.
A similar process (Fig.2) was developed for recovery of Pd and Pt from spent catalysts, using aqueous iodide solutions and tri-iodide as oxidant at neutral pHs, so Pd and Pt could be dissolved selectively from Al2O3 supports that also could be recycled.

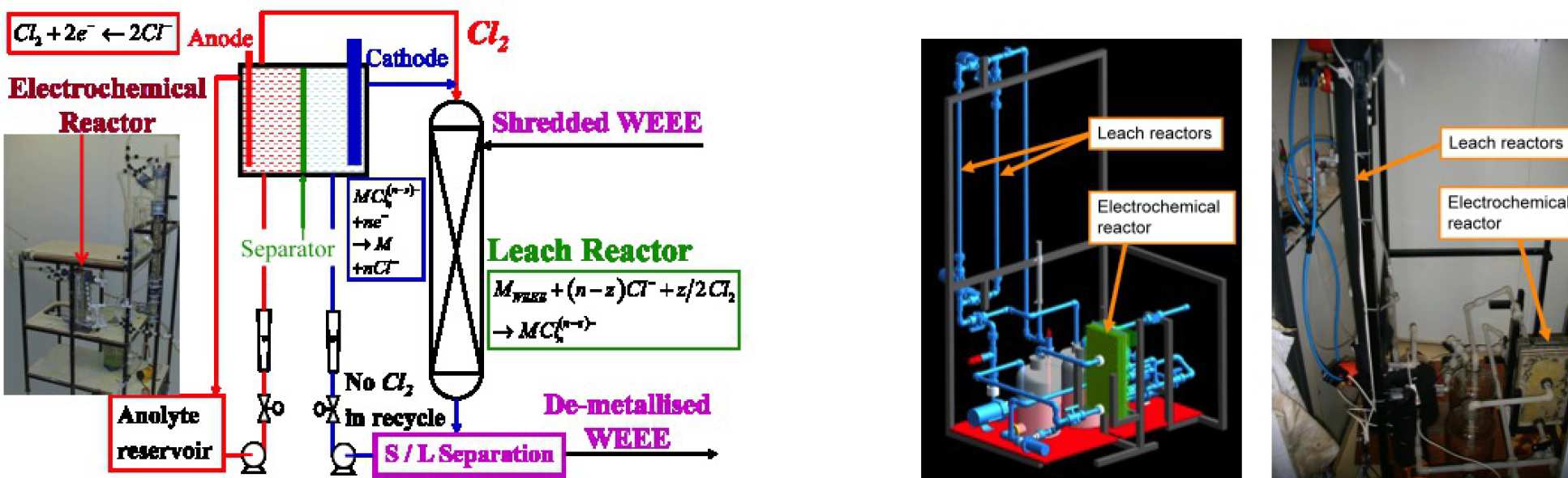

|Fig. 1. Concept of metal recovery from shredded WEEE.||Fig. 2. Electrochemical and leach reactors for metal recovery from spent catalysts.|
