The Mantis Nitrides E-beam Epitaxy Deposition System is an electron beam physical vapour deposition system used for deposition of nitride thin films. It employs three high power e-beam molecular sources and a nitrogen RF plasma source.

It has a typical base pressure of 10-9 torr and operates within the temperature range from room temperature to 1000°C. It is equipped with RGA and RHEED systems for precise thin film growth control.

It consists of heated load-lock with 20x, 4” wafer storage facility. Two stage load-lock system and a separate UHV analytical chamber with a Raman spectrometer equipped with two lasers with a wavelengths of 532 and 785 nm respectively, for in- and ex-situ measurement.

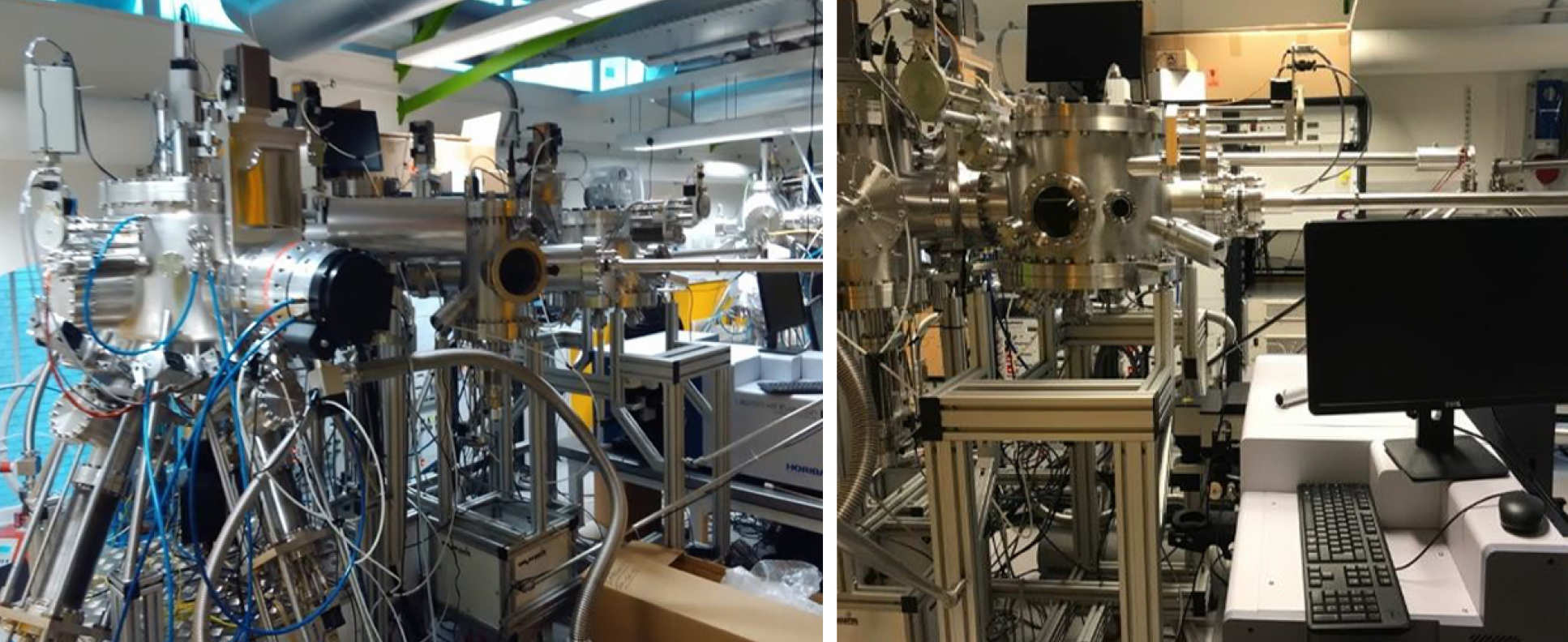

The left image shows the nitrides mantis system and the right image shows the Raman Nitrides system
The left image shows the nitrides mantis system and the right image shows the Raman Nitrides system
