Smart Sensing for Surgery

by

Smart Sensing for Surgery: From Tethered Devices to Wearables and Implantables

Our Hamlyn researchers outline the recent developments and challenges of smart sensing for surgery, from tethered devices to wearables & implantables.

Recent developments in wearable electronics have fuelled research into new materials, sensors, and microelectronic technologies for the realisation of devices that have increased functionality and performance.

The adoption of sensing systems at a global level is clearly going to be determined by cost, infrastructure requirements, and clinical effectiveness. Dr Panagiotis Kassanos et al.

This is further enhanced by advances in fabrication methods and printing techniques, stimulating research on implantables and the advancement of existing medical devices.

Our researchers at the Hamlyn Centre provide an overview of new designs, embodiments, fabrication methods, instrumentation, and informatics as well as the challenges in developing and deploying such sensing devices and clinical applications that can benefit from them.

The need for and use of these technologies across the perioperative surgical-care pathway are highlighted, along with a vision for the future and how these tools can be adopted by potential end users and health-care systems.

FIND OUT MORE >>

Continuous Monitoring: Sensing Across the Surgical-Care Pathway

Human health is assessed through a wide range of physiological parameters, such as heart rate, blood pressure, temperature or blood components for monitoring markers related to liver, kidney, and heart function.

Different health conditions are characterised by combinations of physiological parameters, many of which are not specific to a particular disorder. Thus, a wide range of parameters must be considered to obtain a holistic understanding of a patient’s health.

Continuous monitoring can reveal patterns in the evolution of these parameters through time and as a function of various conditions that would otherwise be overlooked by typical periodic sampling.

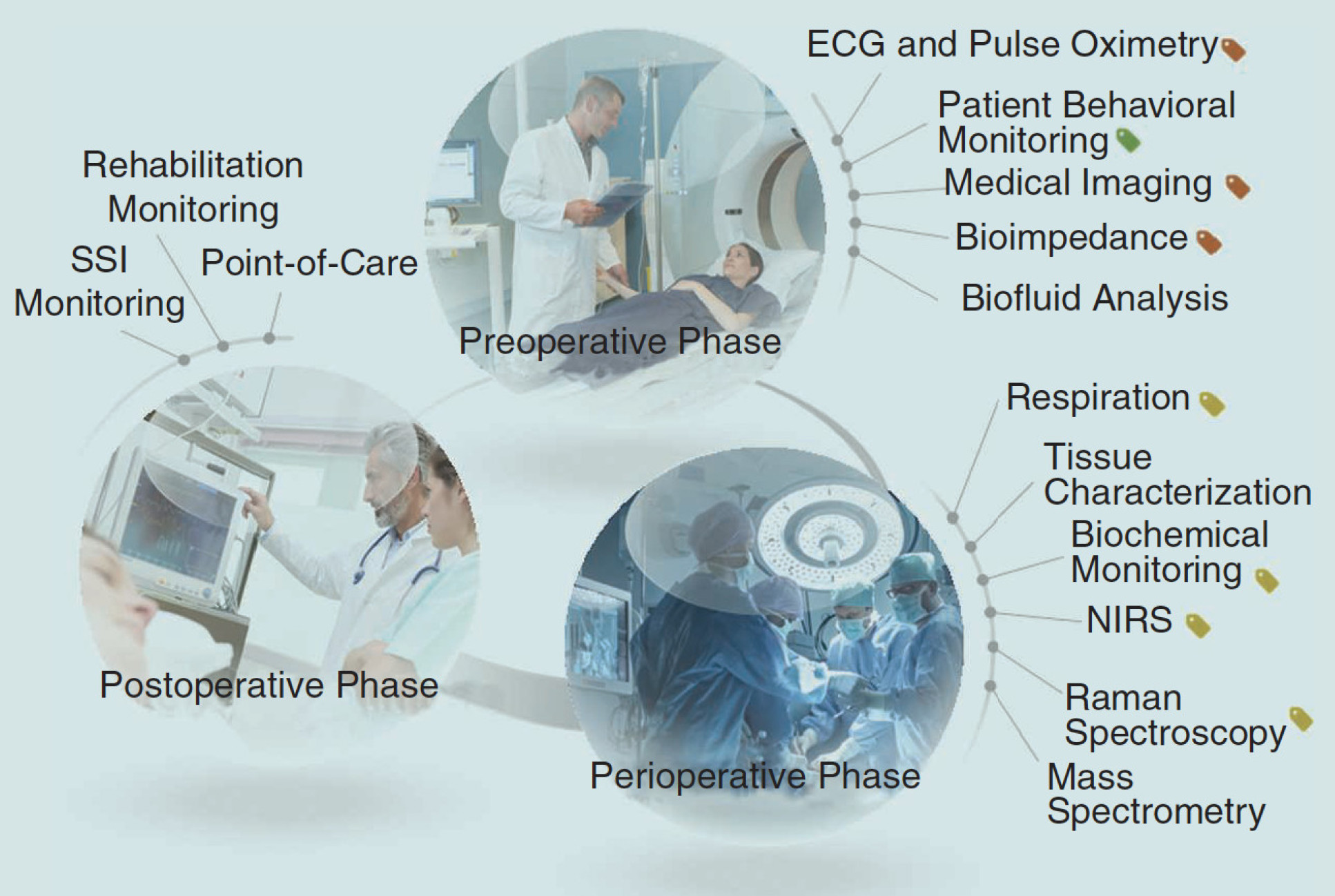

The perioperative-care pathway and examples of sensors that can address different requirements.
The perioperative-care pathway and examples of sensors that can address different requirements. Red: applicable across the perioperative-care pathway. Green: applicable during pre- and postoperative phases. Yellow: applicable during peri- and postoperative phases. SSI: surgical-site infection; ECG: electrocardiography; NIRS: nearinfrared spectroscopy.




To develop impactful solutions for improving efficiency of continuous monitoring by utilising smart sensing devices, it is important to comprehend the surgical-care pathway, including the pre-, peri- and postoperative phases, and assess the relevant clinical gaps and hurdles associated with each.

Our researchers outline the needs of each phase across the surgical-care pathway and provide examples of sensors that can address different requirements.

FIND OUT MORE >>

Continuous Monitoring: Sensing to Improve Surgical Care

Clinicians routinely use many passive medical devices and instruments that provide simple functions and enable access to the human body and various bio-samples.

Introducing sensing intelligence to these systems without altering their deployment and basic functionality is a means of introducing such devices to health care.

Our research teams provide a series of examples that integrate smart sensors as part of the surgical process, bringing significant improvements into surgical care.

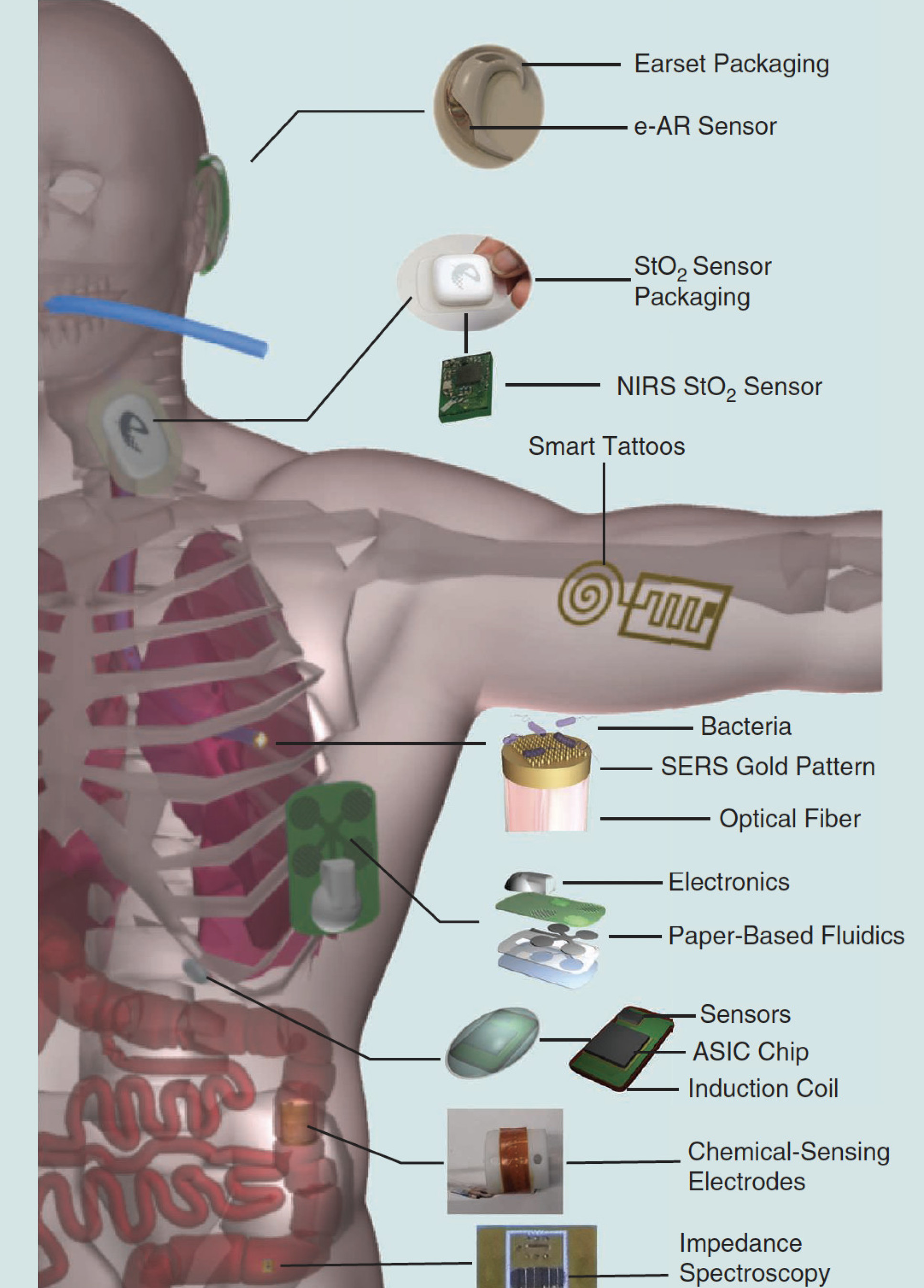

Tethered, wearable, and implantable devices and embodiments
Tethered, wearable, and implantable devices and embodiments, including the ear-worn sensor, wearable wireless NIRS sensor, schematic example of an epidermal smart tattoo wireless sensor, optical-fibre-based surface-enhanced Raman spectroscopy (SERS) sensor, sweat-sampling microfluidic wearable wireless patch, inductively powered implantable device with dedicated application specific integrated circuits (ASICs), and ring and patch sensing platforms for bioimpedance, amperometric, and potentiometric sensing. e-AR: ear-worn activity recognition.

In addition, a list of sensing technologies is summarised with the details of implantation applications, including: (1) Electrical and Physical Sensors; (2) Electrochemical Sensors; (3) Optical Sensors.

FIND OUT MORE >>

Sensing Development: New Materials, Designs, and Embodiments

With regard to new materials, designs, and embodiments, our researchers give an insight of the state-of-the-art sensor development and present several examples of the sensor embodiments and characteristics.

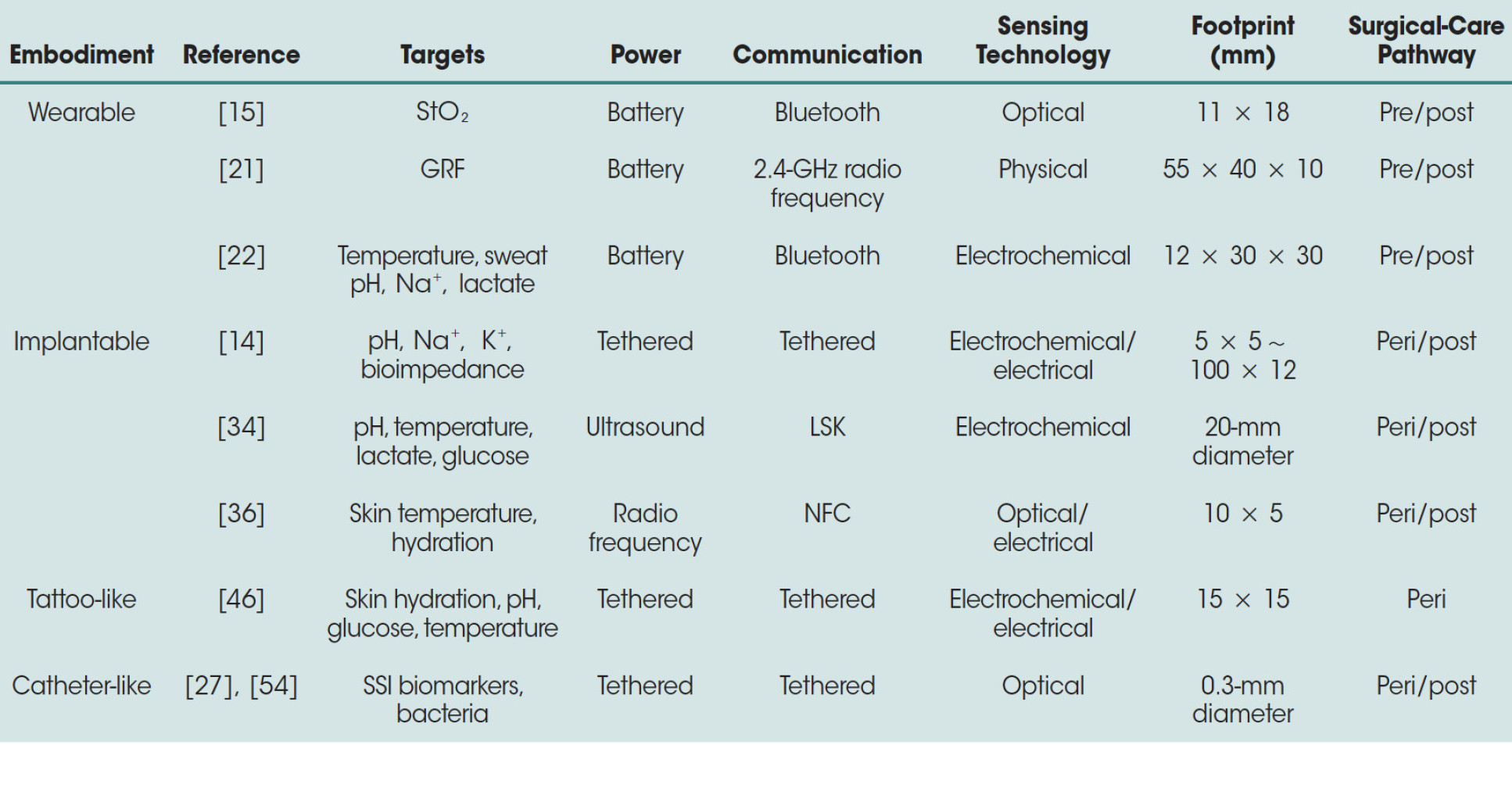

Sensor embodiments and their technical characteristics
Sensor embodiments and their technical characteristics.



In conclusion, this review article not only summarises the current status of sensor implantation and development, but also brings the attention to the challenges on the road of the incorporation of sensing technologies into routine clinical pathways, as well as provides potential solutions for these issues.

FIND OUT MORE >>


This research was supported by EPSRC Programme Grant "Smart Sensing for Surgery (EP/L014149/1)" and “Micro-robotics for Surgery (EP/P012779/1) (Panagiotis Kassanos, Melissa Berthelot, Jang Ah Kim, Bruno M.G. Rosa, Florent Seichepine, Salzitsa Anastasova, Mikael H. Sodergren, Daniel Richard Leff, Benny Lo, Ara Darzi and Guang-Zhong Yang, "Smart Sensing for Surgery: From Tethered Devices to Wearables and Implantables", IEEE Systems, Man, and Cybernetics Magazine, 6 (3), July 2020).
