Mesoscale predictive model

framework
Figure 1: Structural optimisation framework

A mesoscale structural model of the femur is obtained through structural optimisation, via the iterative adaptation of a base randomised FE model subject to a loading regime derived from musculoskeletal simulations of the following activities: walking, stair ascent and descent, sit-to-stand and stand-to-sit.

The modelling framework is illustrated in Figure 1. Figure 2 shows a proximal slice in the optimised FE mesh obtained after adaptation compared to the base femoral FE mesh.







proxifem

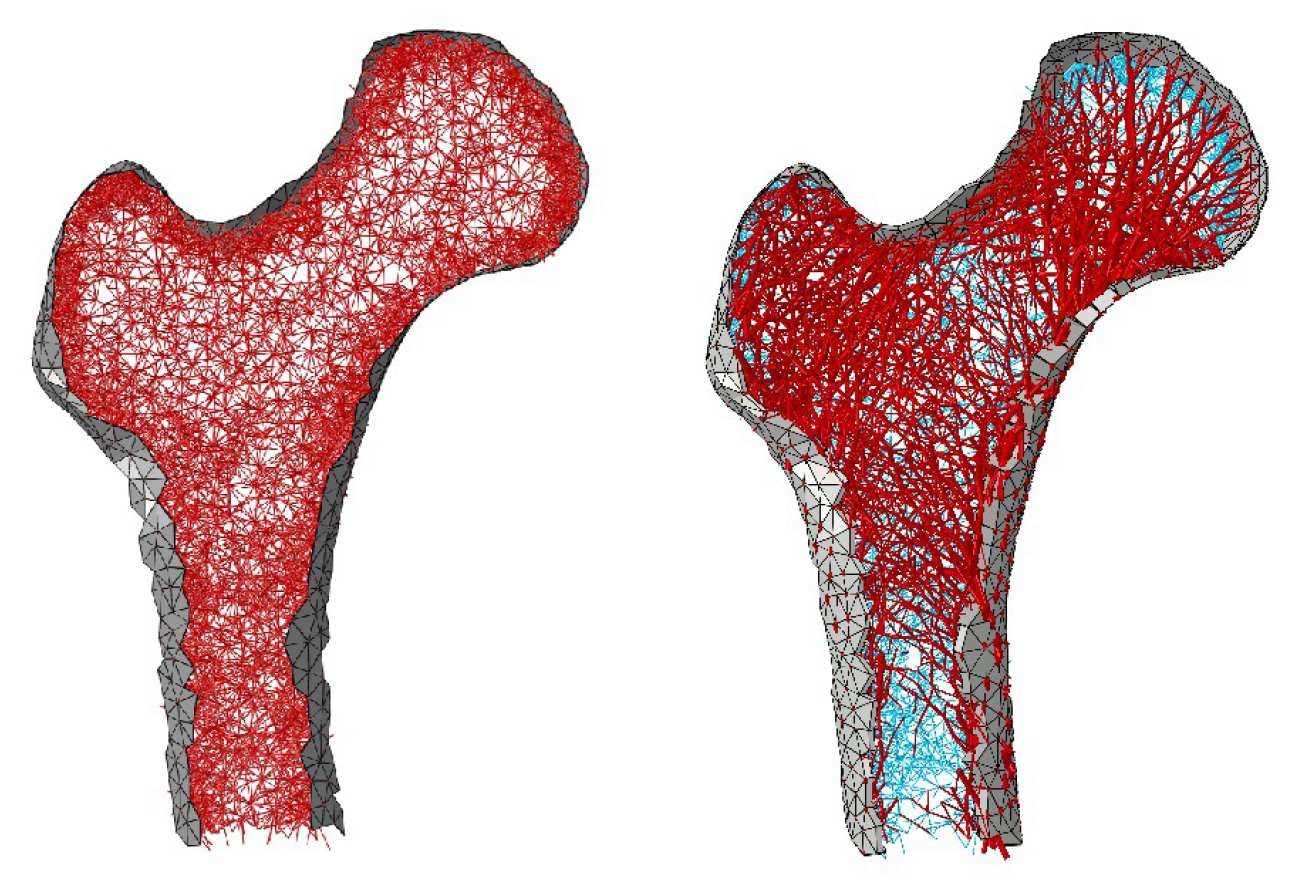

Figure 2: Proximal slices of the initial (left) and optimised (right) femoral meshes. Cortical bone is displayed in white, trabecular bone in red. On the right image, trabecular bone with element radius <= 1mm is displayed in blue.

The main features characteristic of femoral inner structure are well predicted in the model: thick shaft cortex, distal distribution of trabecular bone, directionality of the proximal trabecular group (primary compressive, primary tensile, secondary compressive, secondary tensile, greater trochanter group), Ward’s triangle in the neck.  An important advantage of this model is its computational efficiency, with a running time of the order of one minute on a desktop computer for a simple load case.

Details on the optmisation pipeline and its results for the femur are published in Phillips et al. 2015 (International Biomechanics).

When applied to the tibia and fibula, the same modelling framework also yields a structure in agreement with clinical images.




Publications

Further details of the work are given in:



Researchers

Dr Claire Villette
Dr Andrew Phillips

Prediction of fracture patterns

fracture

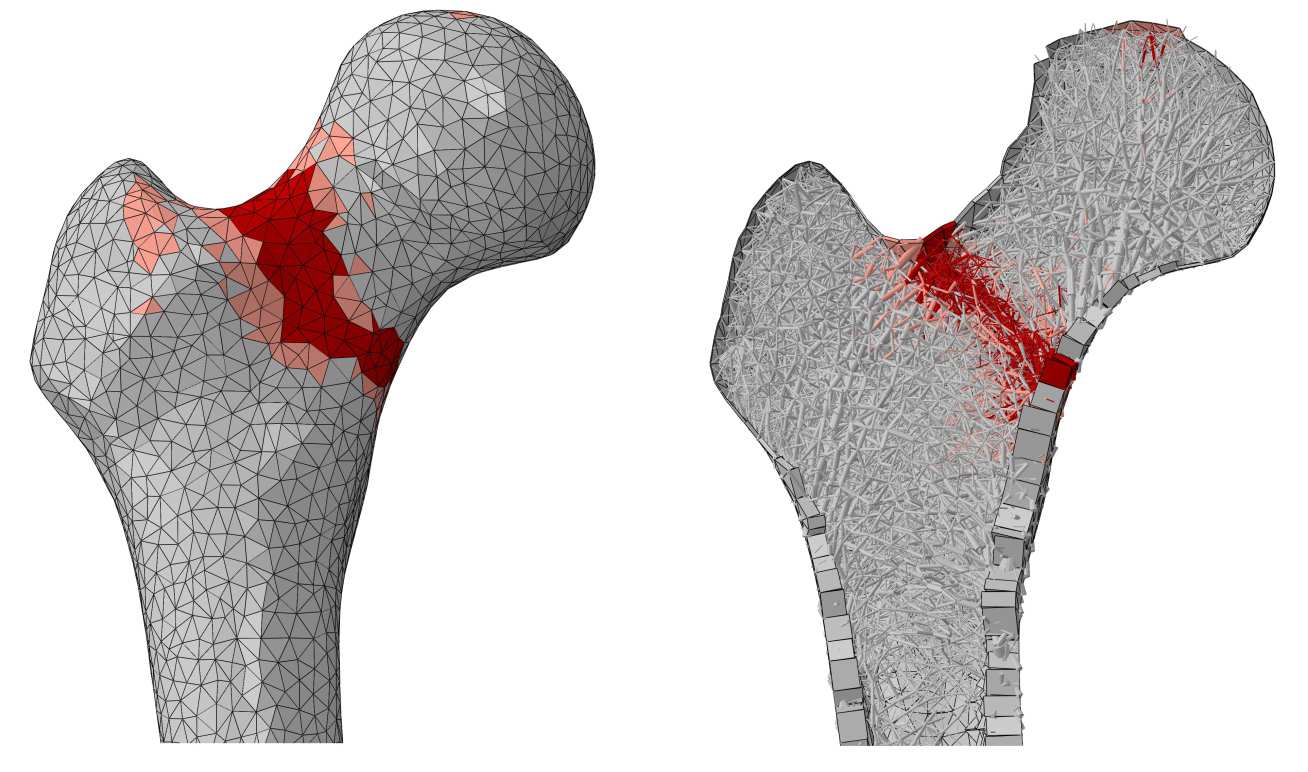

Figure 1: External and internal views of the fracture pattern of a femur under quasi-static longitudinal compression. Elements shown in red have failed, those in pink only yielded. Failure load =7.2kN.

A strain-rate and age-dependant damage elasto-plasticity material model for bone, for use in structural FE simulations, has been implemented which allows prediction of fracture onset and development, in both static and dynamic scenarios. Scenarios tested so far include longitudinal compression of the femur and fall to the side. Figure 1 shows a femoral fracture pattern in longitudinal compression scenario.

This model has been applied to the investigation of the impact of patient activity regime on fracture risk. The impact of bone outer morphology has also been investigated.

Publications

Further details of the work are given in:



Researchers

Dr Claire Villette
Dr Andrew Phillips

Microscale poroelastic model

poroelastic

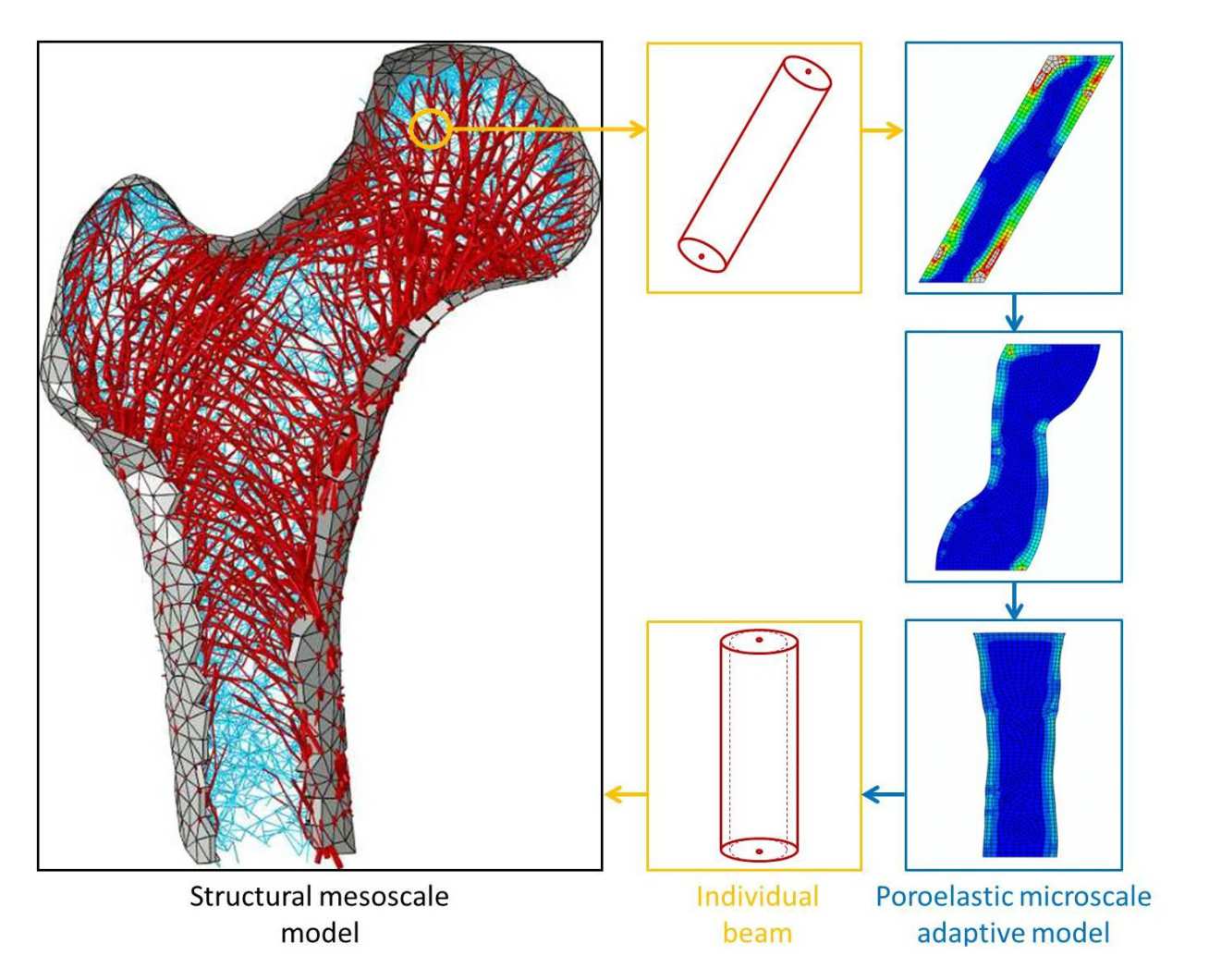

Figure 1: Schematic of the use of the microscale poroelastic surrogate model within a structural mesoscale adaptation

A microscale poroelastic model of a single trabecular element was generated. An optimisation algorithm driven by fluid flow velocity was implemented which allows prediction of single trabecula shape and orientation adaptation under loading.  This microscale modelling approach was used to design a surrogate model allowing prediction of trabecular cross-section and orientation in a structural model, effectively combining the accuracy of the microscale poroelastic model and the computational efficiency of the mesoscale structural model. Figure 1 shows the concept of this multi-scale modelling approach.

metamodel

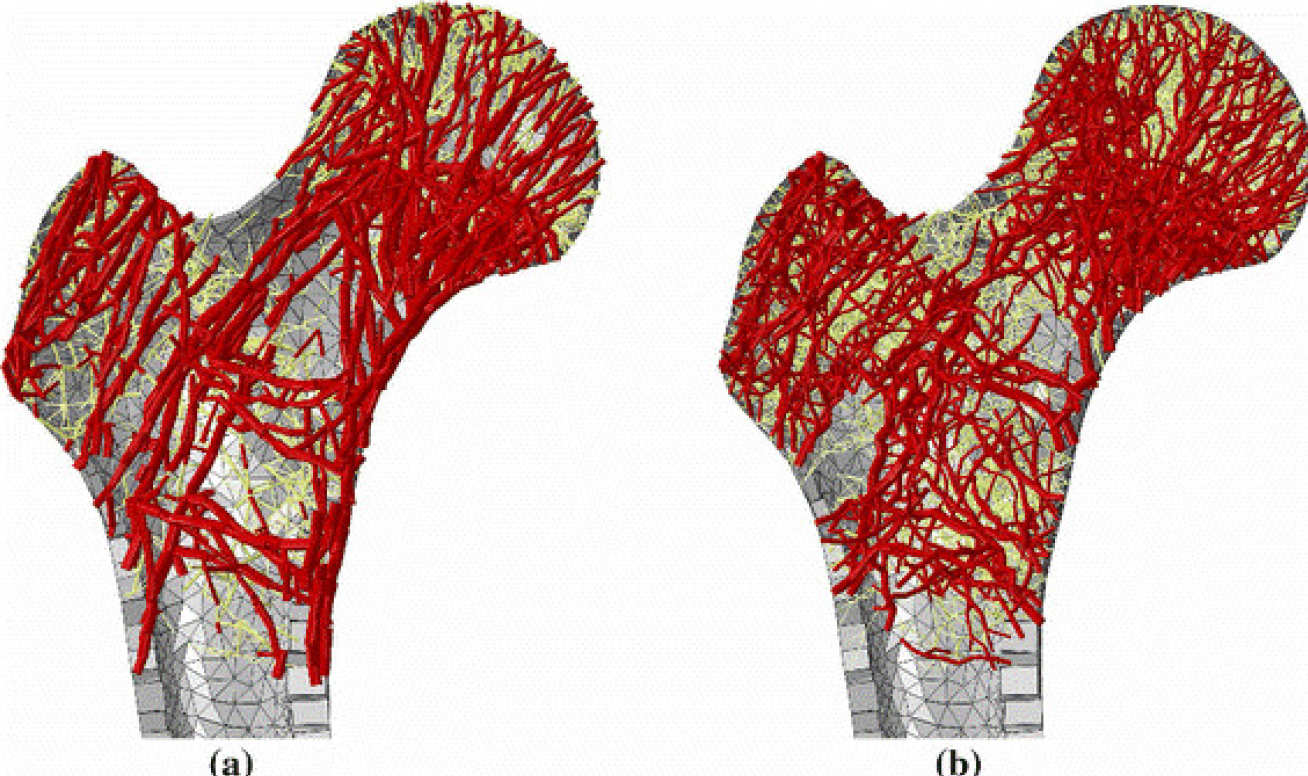

Figure 2: Predictions of femoral architecture due to loading associated with activities of daily living. Frontal posterior cuts of the cortex are diplayed in grey. Trabecular elements across the full depth of the bone are displayed in red (radius r > 0.5 mm) and light yellow (r ≤ 0.5 mm), with their cross-sectional area halved for clarity. (a) Metamodel based on poroelastic considerations supporting trabecular realignment. (b) Original structural optimisation algorithm without trabecular realignment.



The surrogate model was used within a simple structural model of a proximal femur made of around 19,000 elements, submitted to a simplified set of loading cases, and was able to capture realignment of trabecular elements consistent with the main trabecular groups observed in the native femur (Figure 2). With a CPU time of 20 s to run a simple load case, this model has strong potential for an effective compromise between accuracy of bone structure representation and computational efficiency.



Publications

Further details of the work are given in:



Researchers

Dr Claire Villette
Dr Andrew Phillips

Macroscale beam modelling

beam
Cross sections from the mesoscale model taken along the femoral axis (left), macroscale model of the femur consisting of serially stacked beams (center), and detail of a cross section (right)

This project is focused on predicting injury occurence in a more efficient manner than using a traditionnal finite element model. In this macroscale beam model, the mesoscale model developed by the group is first used to predict the bone structure, but the bone is then assumed to consist of serially stacked beams of different cross sections taken at small intervals along the bone axis. The model has the same mechanical behaviour than a beam, and can deform in bending, torsion and axial tension/compression. Using MATLAB, a single load case simulation takes only 0.06 seconds, which makes this model a promising tool for quickly assessing fracture risk during blast.

Researchers

Dr Andrew Phillips
Dr Anantharaman Gopalakrishnan
