Spectroscopic Imaging in Art Conservation

Analysis of materials of cultural heritage collections has a vital role in a responsible modern approach to conservation.  We apply ATR-FTIR spectroscopic imaging to cross-sections from cultural heritage paintings and objects to reveal the chemical composition and to understand the degradation processes in paintings from the National Gallery and other museums.  This information is crucial for conservation practices and our ability to preserve our national collections for future generations.

In addition to the specific findings for each painting, there are a number of general conclusions which can be drawn from this work. Most importantly it has been shown that micro ATR-FTIR imaging can achieve a high spatial resolution (ca. 3 - 4 μm) on paint cross sections; enabling paint layers and even individual particles to be identified, which is not yet possible using other techniques.

The samples chosen were those which had been particularly difficult to characterise using the traditional techniques and where the degradation seen is typical of many similar paintings. Characteristic absorption bands were identified for many of the components present in these complex samples. This methodology is also able to provide a fast qualitative approach for analysis of both organic and inorganic components in a way that is noninvasive for the sample so that it can be examined using multiple analytical techniques. In addition, combining spectroscopic imaging with chemometric analysis allows the wealth of information contained in any one infrared image to be extracted efficiently. Using chemometrics, various multivariate approaches can be conveniently adapted to focus on specific problems left unsolved by univariate analysis. It was demonstrated that ATR-FTIR imaging allows a better understanding of the spatial distribution of components within the samples, from which valuable information about the behaviour of materials within the paintings can be deduced.

The application of macro ATR-FTIR imaging using a diamond accessory, provides a greater field of view (ca. 1 mm²) but a lower spatial resolution (ca. 15 μm), to both cross-sections and surface samples of wall paintings has also been shown to be feasible.

In collaboration with the Royal College of Art and the National Archives, we have also applied ATR-FTIR spectroscopic imaging to cross-section samples of albumen photographs. The preservation of early 20th century, late 19^th century albumen prints is of great concern to collection managers and conservators of photographic materials. The results of ATR-FTIR imaging provided important information about the chemical composition of these samples.

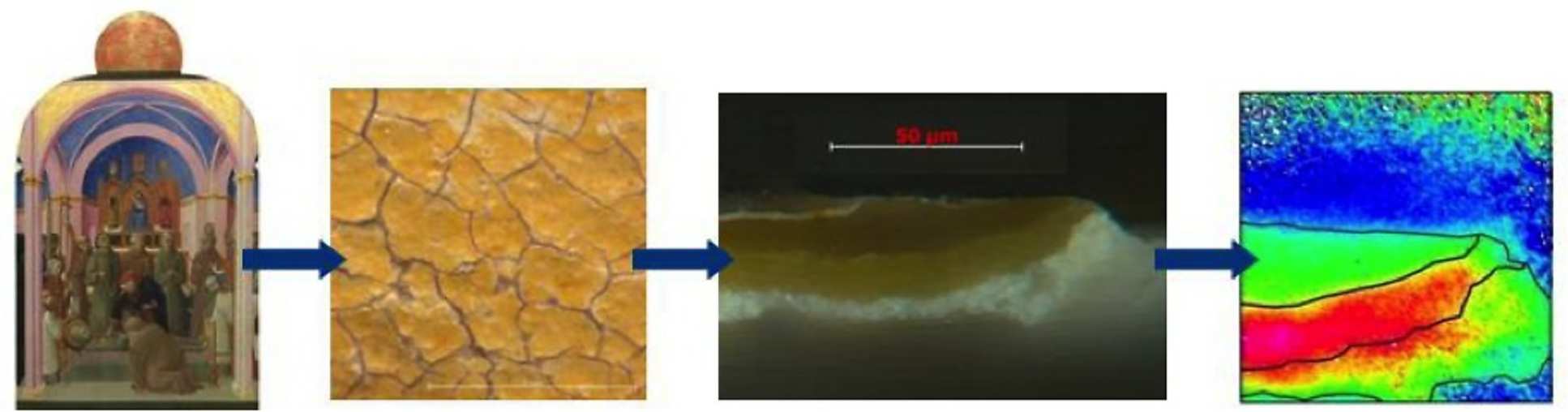

Our group has developed active collaboration in this area with the National Gallery, the British Museum, the Victoria and Albert Museum and other London museums with a successful recent grant from the AHRC. Our contribution in examining objects of cultural heritage is valuable for preservation of important artworks. Following successful collaboration with our group (see image below), the National Gallery has now adopted micro ATR imaging for their conservation practices with the aim to understand the degradation processes in paintings for their conservation practices.  We are developing collaboration with the British Library and Matenadaran (Armenia) on studies of degradation of historic leather and parchment with FTIR spectroscopic imaging.

Our most recent papers in this area are Possenti E. et al "Time resolved ATR-FTIR spectroscopy and macro ATR-FTIR spectroscopic imaging of inorganic treatments for stone conservation" Analytical Chemistry  (2021) 93 (44), 14635-14642 (doi) and an invited review article  by Liu G. L. and Kazarian S. G. "Recent advances in studies of cultural heritage using ATR-FTIR spectroscopy and ATR-FTIR spectroscopic imaging"   Analyst, (2022) 147  https://doi.org/10.1039/D2AN00005A   Open Access
