Teaching Tab

Course materials



*Teaching material will be added progressively to this site



CIVE96008 - Structural Dynamics - SDOF Systems (2020-21)



The aims of this module are:



- To provide students with a general grounding in the basic concepts and principles of dynamics as applied to structural engineering problems.



- To introduce the students to the most common dynamic phenomena in structural engineering and train them in the application of appropriate idealization approaches, their analytical formulation and their mathematical solution.



The module is divided in two parts dealing with single- and multi-degree-of-freedom systems, respectively. Only the material corresponding to the first part is provided below.




CI3-339 - Dynamics of Structures (Undergraduate, 2017)

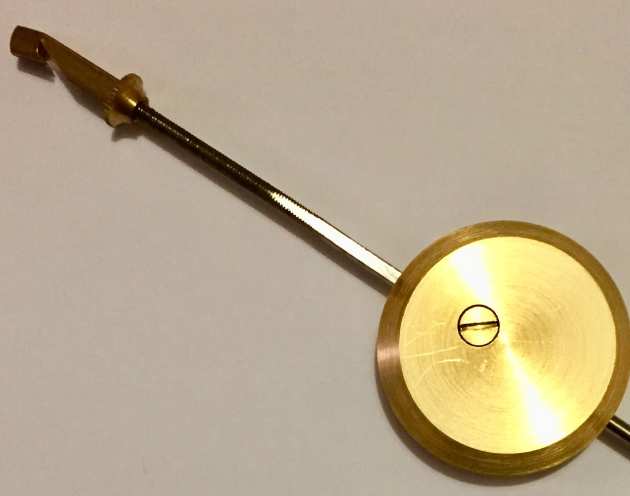

penduloThis course introduces the fundamentals of structural dynamics, and provides students with practice in the calculations required for the modelling, design and assessment of structures subjected to the most common types of dynamic actions. The course is divided in two parts dealing with SDOF and MDOF. Only the material corresponding to SDOF systems is offered below.

Pre-lecture material:  Lecture 01 | Lecture 02 | Lecture 03 | Lecture 04

Lecture notes:  Lecture 01 | Lecture 02 | Lecture 03 | Lecture 05

Tutorials:  T-01 | T-02 |T-03 | T-04 | T-05 | S-01 | S-02 | S-03 | S-04 | S-05




 CI9-STR-08 - Structural Dynamics (Postgraduate, 2017)



resonance

The course offers a general grounding in the basic principles of dynamics as applied to conventional structures. It introduces the students to the most common dynamic phenomena in structural engineering as well as their analytical and numerical solutions. The course is divided in two parts dealing with SDOF and MDOF. Only the material corresponding to SDOF systems is offered below.

Pre-lecture material: Lecture 01 | Lecture 02 | Lecture 03 | Lecture 04

Lecture notes: Lecture 01 | Lecture 02 | Lecture 03 | Lecture 05

Tutorials and solutions: T-01 | T-02 |T-03 | T-04 | T-05 | S-01 | S-02 | S-03 | S-04 | S-05




CI3-338, CI4-438, CI9-STR-40 - Design of Timber & Masonry Structures ( UG & PG, 2017)


ConnectionThis course is an introduction to the design of timber and masonry structures. It should enable a fundamental understanding of the mechanical basis for the procedures and methods adopted in the design of conventional timber and masonry structures. Only the material corresponding to Structural Timber Design is offered below.

Lecture notes: Book.pdf

Coursework: Guidelines.pdf

Jupyter Notebooks (in Azure)web link





Low-cost Shaking Table Project

The Low-cost Instructional Shaking Table project aims to build a cheap but versatile shaking table that relies entirely in Open Source sofware and electronics. You can read about this here.

CI3-339 Dynamics of Structures

CI3-330 Dynamics of Structures Coursework

April 2019: This video documents an outcome of a design, 3D print and test coursework activity developed for Year 3 Civil Engineering students making use of our in-house low-cost instructional shaking table and freeware. The full list of videos can be accessed here.












Shake table demonstration

Shake table demonstration of a rocking frame structure

November 2017:  As part of the Civil & Envionmental Engineering Research Showcase, the group presented recent and ongoing research. We also made some shaking table demonstrations, like this one, to illustrate the effects of ground-motions on buildings. The video corresponds to a single-storey rocking frame shaken at approximately 2.5 Hz
