Powered air-purifying respirators (PAPRs) help doctors and nurses treat coronavirus patients

Imperial College London researchers have developed and sourced powered air-purifying respirators (PAPRs) to assist medical staff to perform high-risk surgical operations.  The high-quality PAPR respirators have been tested and used for risky surgical operations by NHS hospitals in London, including Imperial College NHS Hospitals, Guy's and St Thomas' Hospitals, London Lewisham hospital, and University College London Hospitals. We are now facilitating the supply of PAPR PPE equipment to assist UK surgeons and doctors to fight against the coronavirus and save lives.

Imperial team

COVID-19 - Global Healthcare Challenge

Coronavirus represents the greatest global healthcare challenge for over a century.  COVID infection has caused many patients to be admitted to intensive care as a consequence of viral pneumonia and respiratory distress syndrome.  Patients have required intubation to provide the delivery of oxygen-rich air from ventilators.

As patients progressed through their illness several ultimately required a procedure known as Tracheostomy.  This is where a tube is placed into the patient’s trachea or windpipe.  Studies in Covid-19 infection have revealed that viral RNA can be detected in tracheal secretions many weeks following illness onset.  Early reports during the pandemic also revealed a susceptibility to contracting infection among ENT surgeons. Chinese doctors and nurses have made an extraordinary contribution to defeating the coronavirus. Early experiences from Wuhan showed that infection in ITU workers was only resolved despite wearing N95 masks when PAPRs (Powered Air Purifying Respirator) became available.

Public Health England guidance for aerosol-generating procedures advises the use of an FFP3 mask.   Surgeons have raised concerns about fit testing for a mask type only to be subsequently dispensed with a different brand on the day of surgery.  There are also concerns for surgeons with facial hair for religious or cultural reasons (read the news; Telegraph report). Powered air-purifying respirators (PAPRs) provide full coverage for wearers with facial hair and work well as an alternative PPE that allows healthcare professionals to continue working during the pandemic while maintaining their unshorn hair (read news).

PAPR has been widely used and listed as an option by many international health organisations for PPE against coronavirus. UK Health & Safety Executive Law (HSG53 4th Ed 5.2013) provides detailed guidance on respiratory protective equipment at work (download the PDF).  HSE law states that “FFP3 masks should not be worn for operations taking longer than 60 minutes, and lists various types of non-powered respirators and PAPRs. However, there is a significant shortage of PAPR PPE in the UK.

International Multidisciplinary Team

The project involves close collaboration between scientists and engineers at Imperial College, medical staff from UK and China, Imperial NHS trust, manufacturers and suppliers in China and the UK.

The project was initiated in mid of March and coordinated by Dr Qilei Song (Lecturer in Chemical Engineering), with support from Prof. Nilay Shah (Head of the Department of Chemical Engineering), and the Admin team of Department of Chemical Engineering at Imperial College. Professor Neil Tolley leads the team of surgeons in the Ear, Nose and Throat (ENT) division at Imperial College NHS hospitals.

Team

An international team including Imperial academics, admin team, doctors of Imperial NHS Hospitals, Guy's and St Thomas' Hospital, London Lewisham hospital, University College London Hospitals, and support from Chinese doctors, UK and China industry partners. First Row: Dr Qilei Song, Prof. Nilay Shah, Prof. Neil Tolley, Anusha Sri-Pathmanathan, Dr Rongjun Chen, Prof. Daqing Ma, Prof. Kang Li, Prof. Paul Fennell; Second row: Viji Pilai, Sevgi Thomson,  Nazma Mojid, Paul Silverster, Dr Asit Arora, Dr Tony Jacob, Prof. Jonathan Hughes, Third row: Prof. Peter Andrews,  Prof. Chaozong Liu, Prof. Alister Hart, Prof. Johann Henckel,  Prof. Haibo Qiu, Prof. Chun Pan, Prof. Jianfeng Xie, Prof. Yingzi Huang; Fourth row: Prof. Peiyong Li, Prof. Wei Chen, Prof. Xiang, Dr Shijiang Liu, Prof. Qingtao Meng. Industrial collaborators: Tony Wu, Nigel Nixon, and Steve Nixon.

Powered Air-purifying respirators (PAPRs) for COVID-19

A PAPR system is described as offering enhanced PPE.  It consists of a battery-powered respirator that filters surrounding air by removing hazardous particles and contaminates via a HEPA filter (high-efficiency particulate air filter). This system consists of a protective hood that provides full protection of the head and coverage of the shoulder. It is extremely comfortable to wear due to the flow of positive-pressure clean and cool air over the face.  The hood benefits from no uncomfortable tight-fitting seals on or around the face, making it particularly suitable for racial/ethnic/religious groups that cannot shave facial hair or fail the FFP3 mask fit test.  A fit test is not required for wearing a loose-fitting PAPR hood.

Filtration

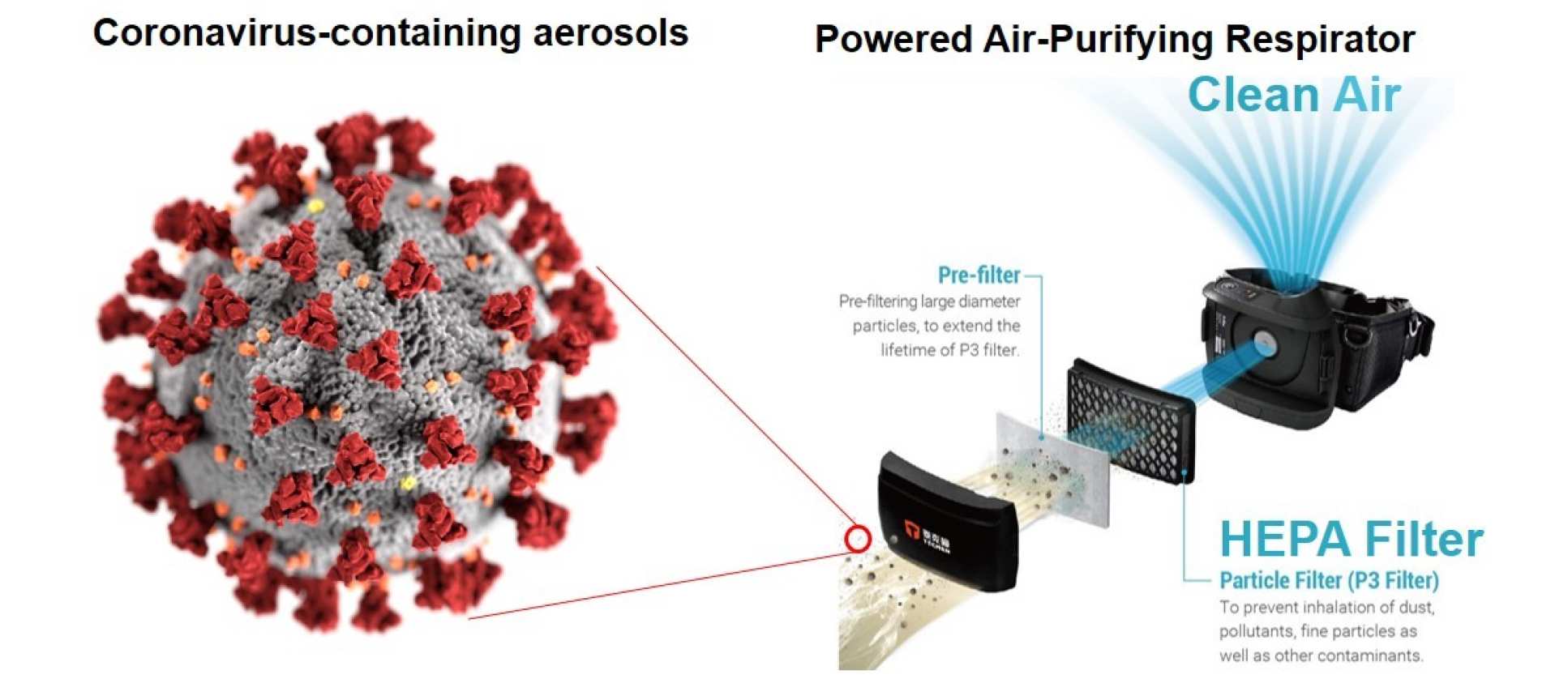

A schematic diagram - the P3-level HEPA filter in a PAPR provides high-efficiency filtration of aerosol particles containing coronavirus with a size of 60-140 nm.

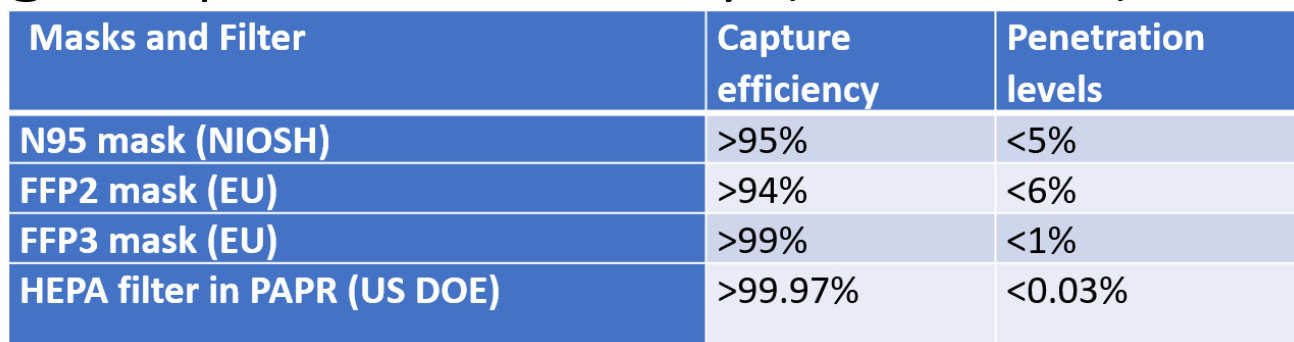

Comparison of capture efficiency of masks and HEPA filters

Comparison

PPE type (UK Health & Safety Executive Law, HSG53 4th Ed 5.2013)

Link to the Respiratory protective equipment at work - A practical guide

Download the PDF copy of the guidance

HSE-PPE

Engineering Solution

Time is everything. We firstly evaluated the supply chain of PAPR and the availability of PAPRs in the UK. Chinese doctors have made tremendous efforts to defect the coronavirus.  We knew that PAPRs have been widely used on the front line in Wuhan, such as Chinese-made TECMEN PAPR. In contrast, there is a significant shortage of PAPRs in the UK.  Sourcing and supplying large volumes from China to the UK through the NHS Trust Procurement was challenging. Surgeons desperately need the PPE to perform surgeries, therefore we had to come out with an immediate solution. We found that PAPRs have been widely used in the UK welding industry. We immediately sourced several commercially available PAPRs and respirative hoods from a variety of UK suppliers and assembled a few prototypes in a week.

Safety is everything! PAPR consists of a variety of key components: air blower, prefilter, particulate filter, breathing hose, hood, and battery. Filter is the critical component. Many welding PAPRs are only equipped with P2-level filter that only gives nominal 94% capture efficiency. The filter can be contaminated by the coronavirus and needs to be changed frequently. The front covers in air blower units used in the welding industry have holes and are not intrinsically safe for use in hospitals. Contamination of fluids such as blood, water, alcohol and disinfectant can damage the filter and drastically reduce protection. The breathing tube and air blower should be easily cleaned and decontaminated.

After quick screening and evaluation of all these parameters, we chose the TECMEN PAPRs with P3-level high-efficiency particulate air (HEPA) filter from the UK distributor, Weldfast UK. We assembled a few TECMEN PAPR prototypes and tested them with Prof. Tolley's team.

PAPR

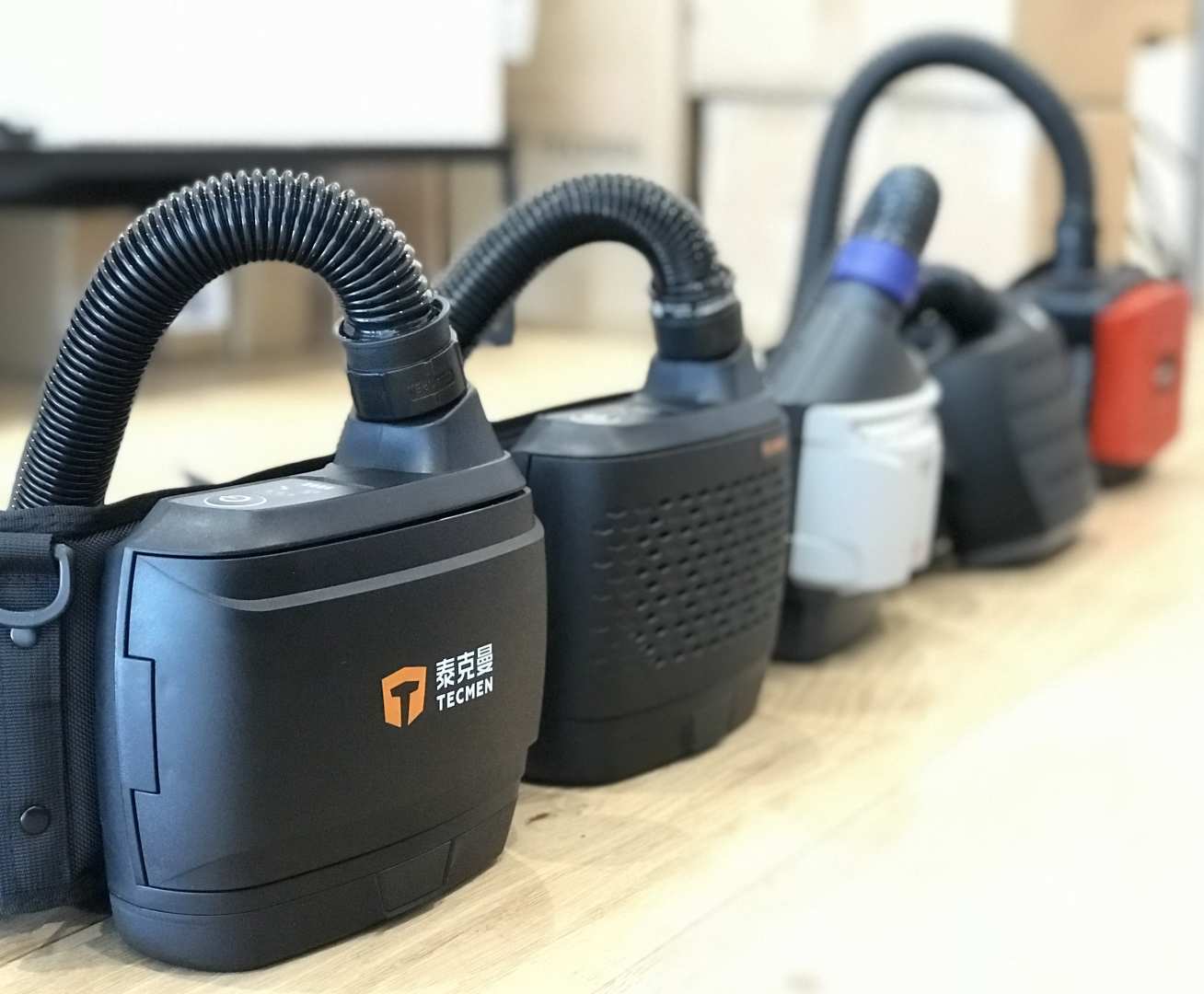

We compared the technical parameters of a range of PAPR, including TECMEN PAPR, 3M Versaflo, and PAPRs used in the welding industry such as 3M Adflo PAPR.

Support from Chinese Manufacturers

We also contacted the manufacturer of TECMEN PAPR, Nanjing TECMEN Electronics in Nanjing China. TECMEN kindly donated their upgraded TECMEN PAPR TM-H2 systems and accessories, including front cover, and reusable hoods, and arranged speed delivery to Imperial College. Their kind donation allowed us to upgrade our prototypes to the same as TECMEN PAPR TM-H2 System that has been widely used in China.

We further purchased the TECMEN PAPR TM-H2 System from the manufacturer in China.

  • TECMEN TM-H2 PAPR has been CE marked and certified to British Standard BS EN 12941:1998+A2:2008, by an independent PPE testing laboratory at INSPEC International Ltd, a UK Notified Body.
  • The PAPR is certified to have high capture efficiency (>99.996%).
  • The air blower unit is protected with a liquid-proof filter that helps to protect the filter from contaminations of fluids.
  • The hood has a large clear visor that is anti-fog, so vision will always be clear.
  • The battery duration is up to 9 hours with a recharge time of only 1 hour.
  • The hoods are extremely comfortable to wear, and the turbo conveys filtered clean air to the head and face of the wearer.
  • The manufacturer in China can supply key consumables (prefilter and filters, to be disposed on a daily basis for best protection) and accessories by air freight in 5-7 days.
  • The manufacturer will provide detailed donning and doffing procedure, disinfection instructions, and share experiences from frontline doctors in China.
  • Training procedure will be available from the ENT team at Imperial College Hospitals.

Therefore, these PAPR respiratory protective devices provide great support for medical staff to perform high-risk COVID-19 operations in a hospital environment.

TECMEN



Support UK NHS Hospitals

With the support of industry partners TECMEN and WeldFast UK, we have delivered and donated more than 100 PAPR respirators to the following NHS hospitals. We are also collaborating with these hospitals to perform research using this equipment.

  • Imperial College NHS hospitals including Hammersmith Hospital, St Mary's Hospital, and Charing Cross Hospital
  • University Hospital Lewisham, London
  • Guy’s and St Thomas’ Hospital Affiliated to King’s College London
  • University College London Hospitals including Royal National Throat, Nose and Ear Hospital

We hope to supply the equipment to many other NHS hospitals in UK. If you wish to support this project, please make a donation:

https://www.crowdfunder.co.uk/hoodsforheroes#start

https://www.justgiving.com/crowdfunding/ppe-for-frontline

Imperial


Industrial Partners

We have established the supply chain by connecting the manufacturer in China, Nanjing TECMEN Electronics, and UK distributor WeldFast. The collaboration allows the UK hospitals to purchase large volumes at reasonable prices, at a time when raw materials are extremely scarce.

TECMEN is a reputable manufacturer located in Nanjing, Jiangsu Province, China. The company is certified to product quality management (ISO 9001/2000 certified). TECMEN brand products are CE, GS, DIN, CSA, ANSI, AS/NZS approved already under the newest standard.

Website: www.tecmen.com Email: tecmen@tecmen.cn

WeldFast UK is a leading UK company supplying engineering and safety equipment including PAPR. Weldfast UK currently supplies and supports over 800 distributors in the UK and Ireland with the emphasis on supplying quality equipment and services at competitive pricing.

Website: https://www.weldfastuk.co.uk/  Email: sales@weldfastuk.co.uk


Collaboration with Chinese Doctors

Chinese doctors and nurses made tremendous efforts to beat back the coronavirus on the front line in Wuhan. Dr Song and colleagues at Imperial, including Dr Rongjun Chen from the Department of Chemical Engineering and Professor Daqing Ma, from the Department of Surgery & Cancer, contacted frontline doctors in Wuhan, China who have been sharing their clinical experiences and knowledge with the hospital staff, as well as experiences of using this equipment. Many Chinese Students studying in the UK also volunteered to help collect feedback and translation of practices on COVID-19 treatment published by Chinese professional societies and journals.

An international zoom meeting with Imperial College NHS Healthcare Trust has taken place which provided a great deal of knowledge, insight, and advice to the doctors of Imperial hospitals. The Chinese doctors working day and night at Wuhan front line, including Professor Haibo Qiu and his team from Zhongda Hospital at Southeast University in Nanjing, Professor Xiang Lu and his team from Tongji Hospital at Huazhong University of Science and Technology in Wuhan, Dr Peiyong Li and Dr Wei Chen from Ruijin Hospital in Shanghai, Dr Shijiang Liu from Jiangsu Provincial People's Hospital of Nanjing Medical University in Nanjing, spoke with medics from Imperial College Healthcare NHS Trust to establish a step-by-step for safely using and re-using the equipment.

Chinese doctors
Chinese surgeons performing risky tracheostomy operations with the protection of PAPR in Wuhan.  Prof. Yingzi Huang, deputy director of Zhongda Hospital affiliated to Southeast University and head of Jiangsu Medical Support Team, is one of three surgeons. Read the news

Academic Impact and Societal Impact

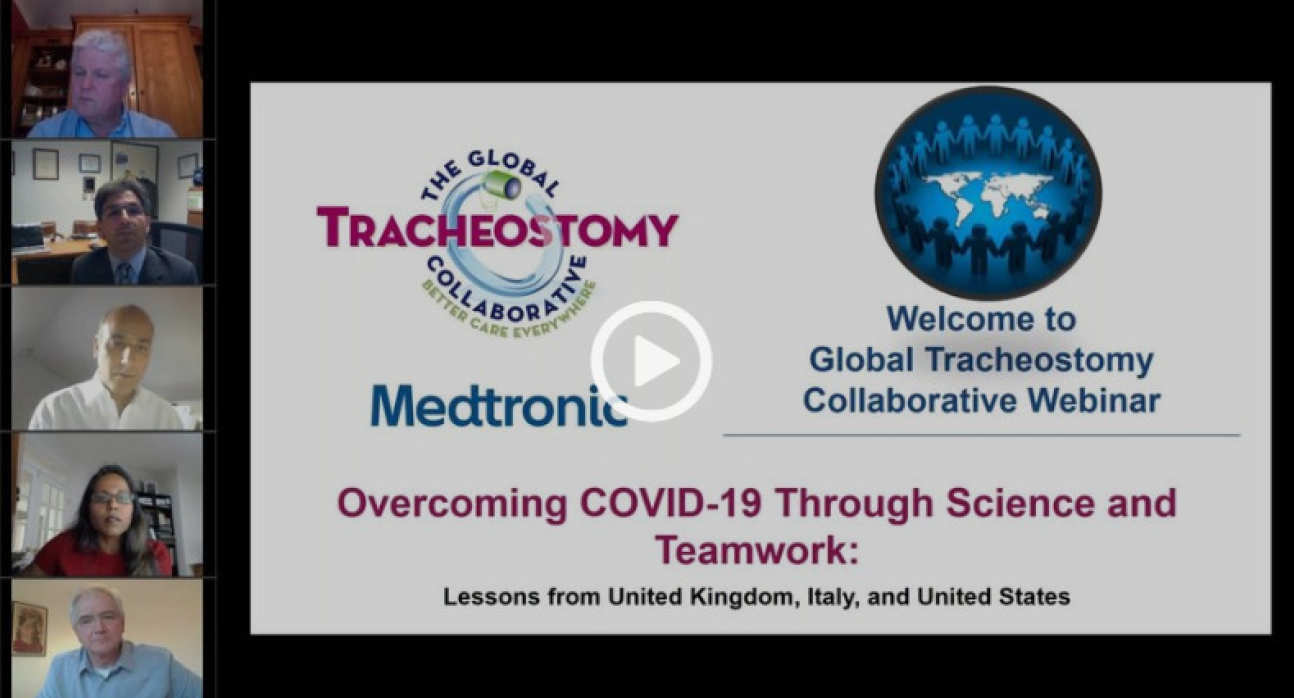

Global Tracheostomy collaborative Webinar

Prof. Neil Tolley has shared their early experiences of using PAPR with UK ENT association (Read the newsletter by Prof. Tolley) and the broader clinical communities in Europe and worldwide through a Global Tracheostomy collaborative Webinar - Overcoming COVID-19 through Science and Teamwork: Lessons from the United Kingdom, Italy, and United States

Moderators:
Michael Brenner MD, FACS, Michigan Medicine | University of Michigan
Vinciya Pandian PhD, MBA, MSN, RN, ACNP-BC, FAANP, FAAN, Johns Hopkins University

Speakers:
Professor Neil S. Tolley MD, FRCS, DLO
Senior ENT-Thyroid Surgeon
Imperial College Healthcare NHS Trust, London, UK

Dr. Peter J. M. Openshaw, FRCP
FMedSci Immunologist and Member of the New and Emerging Respiratory Virus Threats Advisory Group (NERVTAG)
Imperial College Healthcare NHS Trust, London, UK

Professor Paolo Pelosi, MD, FERS
Director, Chief Professor of Anaesthesia and Intensive Care Director, Specialty School in Anaesthesiology
University of Genoa, Genoa, Italy
Head of the Anaesthesia and Intensive Care Unit at the IRCCS, San Martino-IST Hospital, Genoa, Italy

Dr. Christopher Rassekh, MD, FACS
Professor, Department of Otorhinolaryngology-Head & Neck Surgery Co-Chair, Hospital University of Pennsylvania Airway Safety Committee
Director of Risk Reduction and Director of Professional Practice, Department of OtorhinolaryngologyHead and Neck Surgery
University of Pennsylvania, USA

Dr. Asit Arora, PhD, DIC, DOHNS, FRCS
ENT, Airway, Robotic Head & Neck Consultant Surgeon
Guy’s and St. Thomas’ Foundation NHS Trust, London, UK

webinar

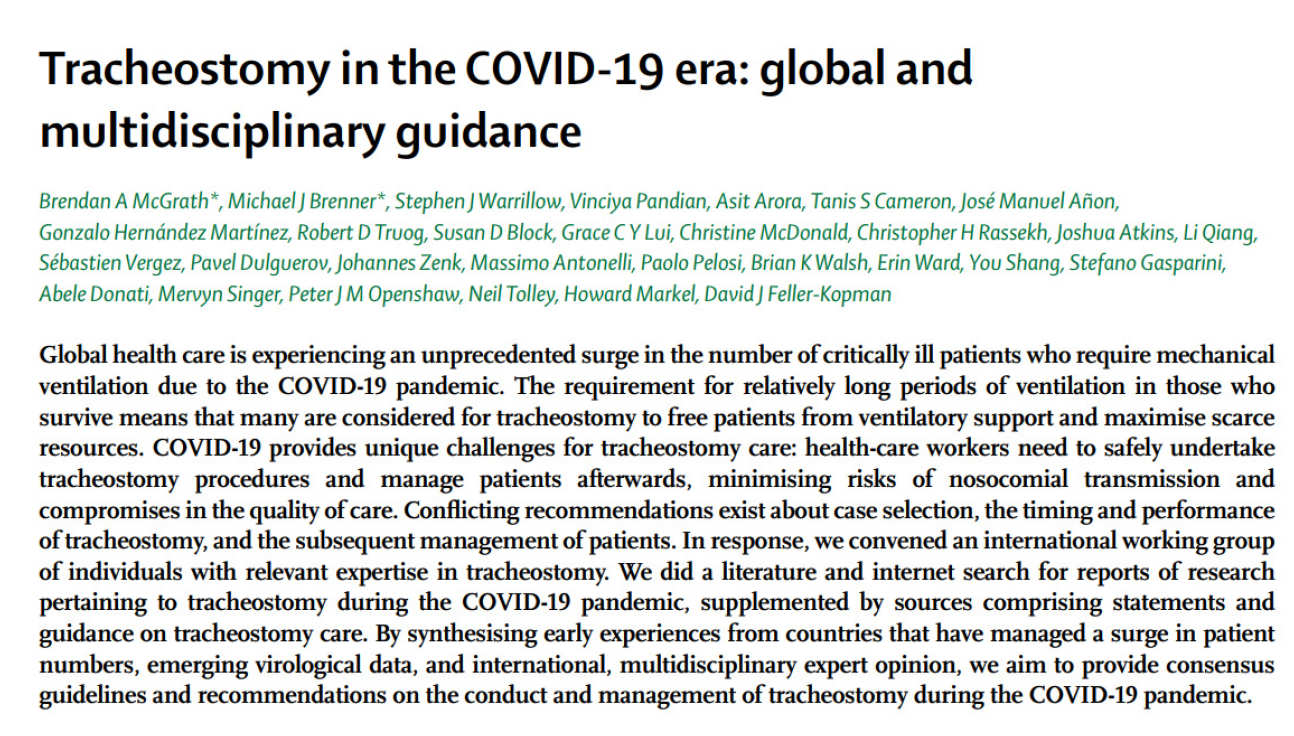

Publication on international consensus guideline document of tracheostomy
