Artificial fog helps lasers shine brighter


Light scattering off a small white foam

The 'fog' in action. Credit: Florian Rasch

Laser-based lights could replace lightbulbs thanks to an artificial ‘fog’ that scatters laser light, producing high brightness at low power.

The new and improved laser-based lights could be used anywhere from indoor lighting and projectors to car headlights and outdoor floodlights. As they produce high brightness at low power, they would be more energy-efficient than regular lightbulbs or LEDs.

We are currently looking into applying this technology for future high-brightness and low-power illumination systems, with an enormous range of applications from indoor lighting to aerospace. Dr Felice Torrisi

Current uses of laser light are limited to a single colour and the light is very focused and narrow – for example in laser pointers, barcode scanners and DVD players.

Now, a team led by the EU Graphene Flagship with collaborators including Imperial have invented a diffuser that scatters laser light, making it more useful in lighting larger areas.

The study, published in Nature Communications, also shows how the laser light can be tuned to different colours, including white, which has been difficult to achieve with lasers.

More than 99.99% air

Previously laser-based lights, called laser diodes (LDs), have created white light by shining a laser onto phosphor materials, but the process is not very efficient and can only create one colour of light.

The team invented a new way to create white light, by shining red, blue and green lasers into a diffuser made of hexagonal boron nitride (hBN), an ultrathin material related to graphene.

The diffuser, called aero-BN, is made of a semi-transparent web of randomly arranged and interconnected hBN hollow microtubes, and consists of more than 99.99% air. The three coloured laser beams penetrate deeply into the diffuser, where they are strongly and randomly scattered multiple times by the nanoscopic walls of the microtubes.

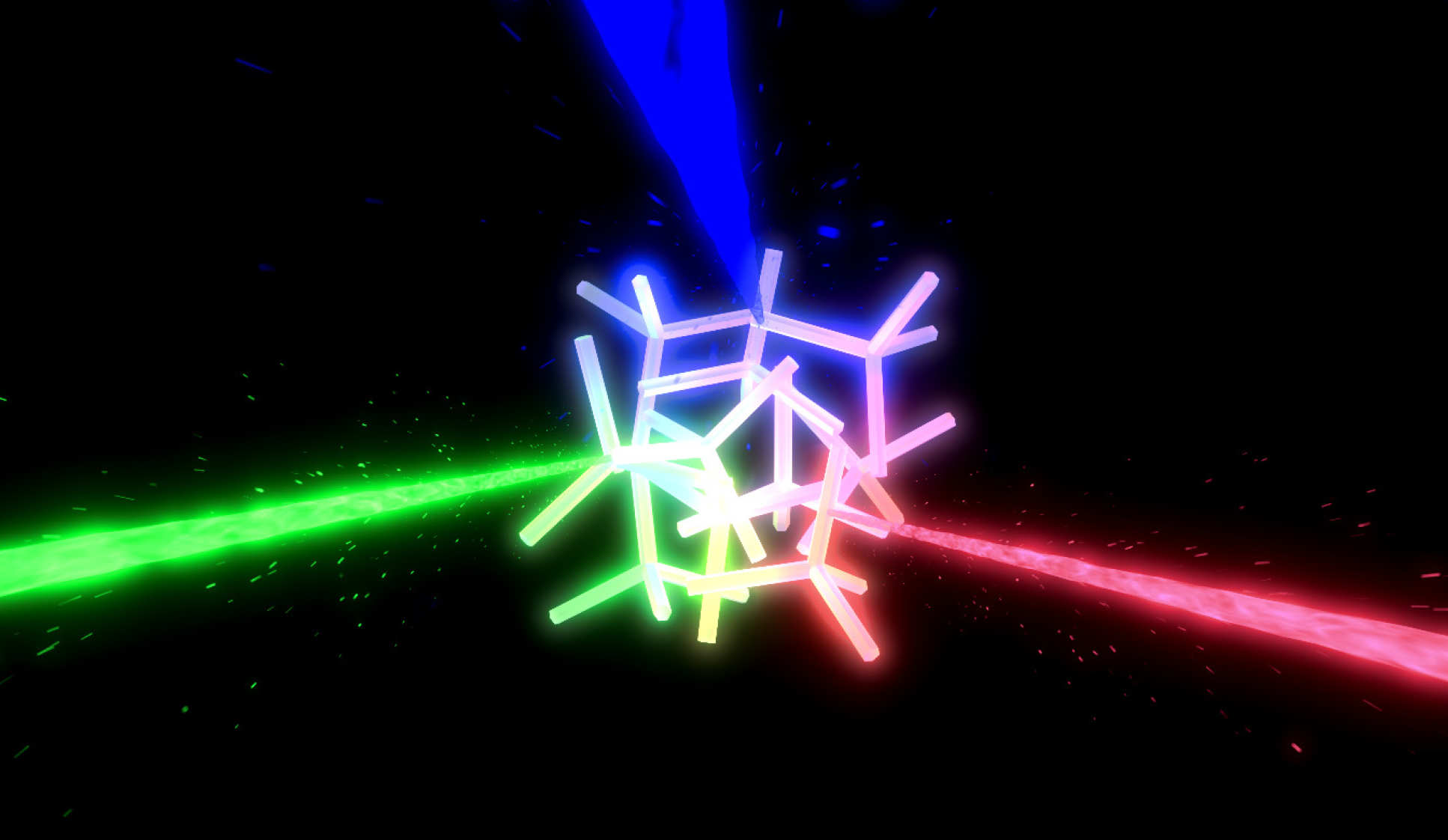

Illustration of red, green and blue lights entering a complex web
Graphical representation of the Aero-BN diffuser exposed to three lasers beams. Credit: F. Schütt

In this way, the diffuser acts like an artificial fog, making the light more diffuse. At an optimum intensity of all three lasers, white light is emitted, and by varying the ratio of intensity of the coloured lasers, this method allows for the choice of a rainbow palette of colours.

Enormous range of applications

Co-author of the study Dr Felice Torrisi, from the Department of Chemistry at Imperial, said: “We have shown that hexagonal boron nitride flakes can be assembled into a micro-scaffold that converts laser light into a white light source suitable for low-power and high-intensity lighting applications, just like lightbulbs, with the advantage of operating across all the visible colours.

“We are currently looking into applying this technology for future high-brightness and low-power illumination systems, with an enormous range of applications from indoor lighting to aerospace.”

The high degree of scattering inside the fog also reduces the problem of ‘speckle’ - a contrast pattern usually caused by LDs that is uncomfortable for human vision, making it unsuitable for lighting applications. In the artificial fog, a large number of speckle patterns were superimposed and averaged out, so that they became invisible to the human eye.

Professor Xinliang Feng, the Graphene Flagship's Work Package Leader for Functional Foams and Coatings, said: "This is an excellent example of how we can utilise the functionality of layered materials on the macroscopic scale. The foam is capable of withstanding extremely high-powered lasers, allowing for the creation of small-scale light sources with extremely high intensities."

Conversionless efficient and broadband laser light diffusers for high brightness illumination applications’ by F. Schütt et al. is published in Nature Communications.

Based on a press release by Graphene Flagship
