Under the leadership of Marina Galand, we have been selected as a supporting investigator for the Venus Express mission. Our scientific activity comprises four inter-connected themes (see below for further information about the themes):
Magnetized environment (Contact: Elizabeth Lucek)
Mesosphere/Thermosphere (Contact: Ingo Müller-Wodarg)
Ionosphere (Contact: Marina Galand)
Laboratory molecular spectroscopy (Contact: Juliet Pickering)
Team leader: M. Galand
Other members: N. Achilleos, R. Blackwell-Whitehead, C. Bertucci, C. Carr, M. Dougherty, I. Müller-Wodarg, J. Pickering, and postgraduate students.
|Data Source and Objectives||
|Magnetised Environment||ASPERA, MAG||MHD Flow model coupled to GCM|
|Ionosphere||ASPERA, MAG||SPICAV, VeRa||Kinetic Models and GCM|
|Mesosphere/Thermosphere||SPICAV, VIRTIS, PFS, VeRa|| 1D and 3D fluid models
Radiative transfer model
| Laboratory Molecular
| Supports SPICAV and
VIRTIS data analysis
|VUV Spectroscopy (SO2)|
Study of the upper atmosphere of Venus is part of our research into Planetary Aeronomy.

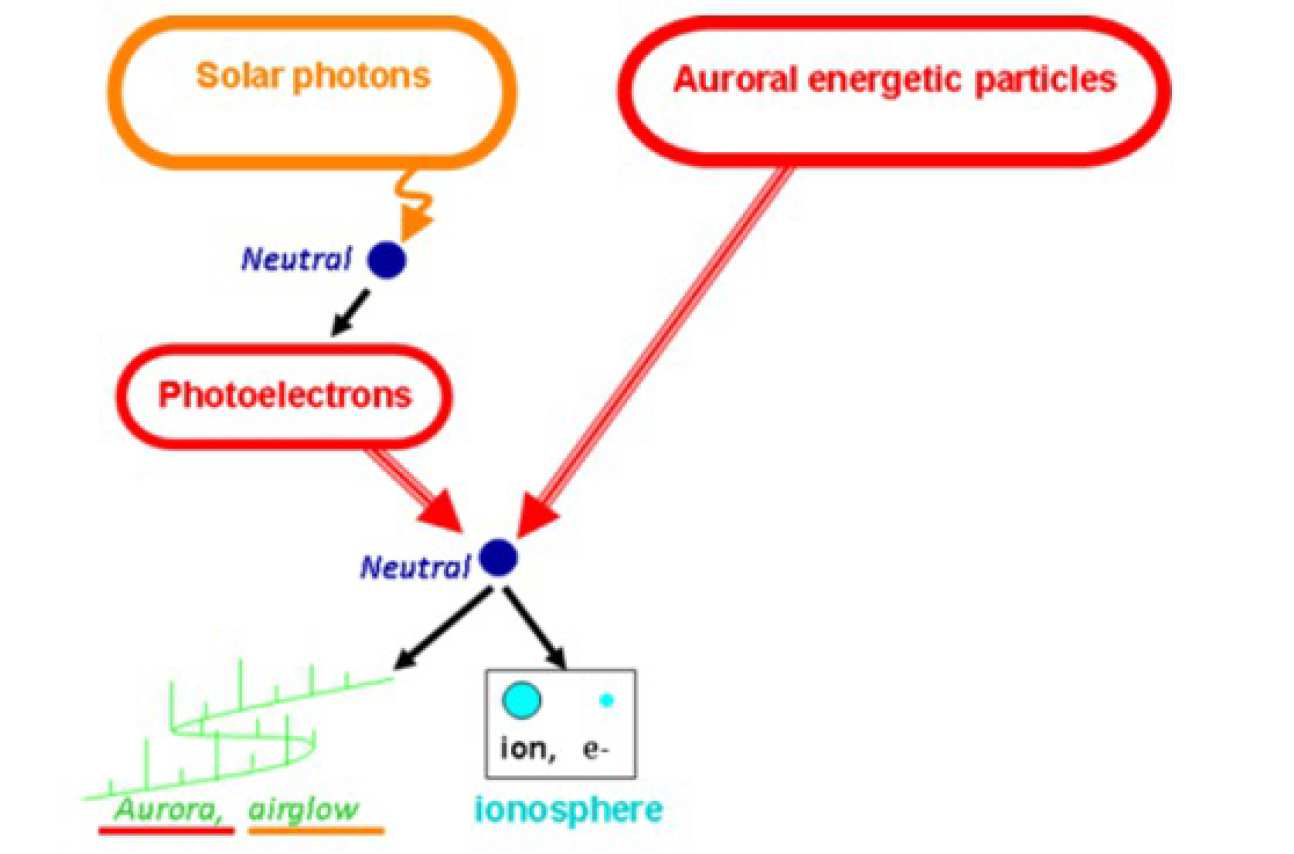

THEME: Ionosphere of Venus
Objectives: To identify the major energy sources and transport mechanisms and to assess their contribution to Venus' ionosphere
Contact person: Dr. Marina Galand
The dayside ionosphere is chemically well understood (e.g., Fox [1982, 1997], Fox and Sung ). Its ionization sources are solar soft X-ray and EUV photons and the induced photoelectrons - whose contribution has been estimated to 30% of the total ionization at low solar activity [Fox and Kliore, 1997].
At nightside, the ionosphere is highly variable with a composition similar to the dayside ionosphere [Fox and Kliore, 1997]. Two ionization sources have been identified so far for maintaining the nightside ionosphere: (1) the nightward plasma (O+) transport [Luhmann, 1990; Fox and Kliore, 1997] (2) suprathermal electron precipitation believed to be shocked solar wind electrons moving from the tail region [Nagy and Cravens, 1997].
We intend to address the above objectives through a multi-instrumental study including ASPERA, MAG, SPICAV, and VeRa dataset. The binding elements of the various datasets are comprehensive modelling tools which we have been developing and/or applying to planets and moons in the Solar System. Similar work is currently being carried out to understand the Cassini observations of Titan's ionosphere [Galand et al., 2006].
Laboratory Molecular Spectroscopy
THEME: Laboratory molecular spectroscopy
Objectives: To provide laboratory spectroscopy measurements at high resolution of venusian atmospheric species photoabsorption cross section in support to SPICAV and VIRTIS data analysis
- VUV spectral range: ~ 135 - 350 nm
- Intensity Calibrated
- High Resolution (lambda/delta-lambda = 450000)
- Pressure: 1-10 Torr
Application to SO2:

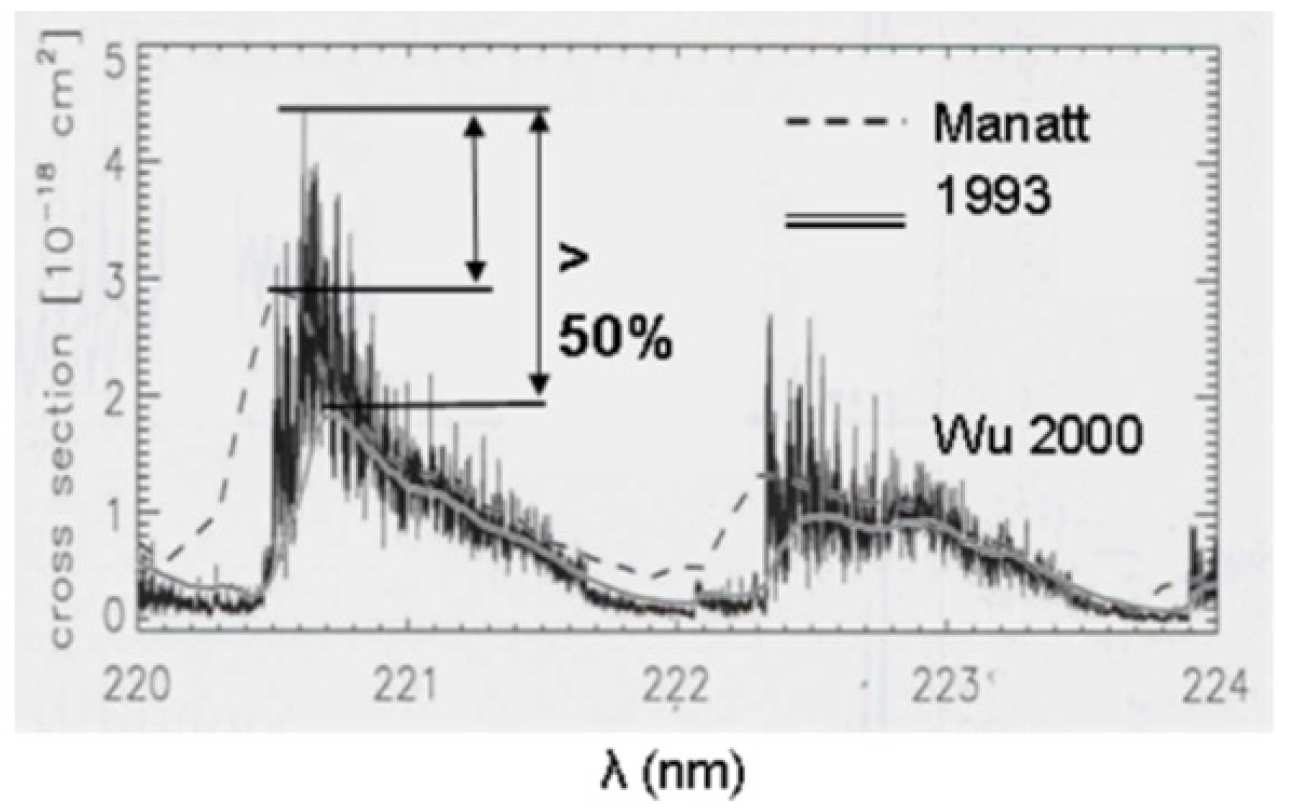

Figure 1 (right):
Comparison of our high resolution 300 K SO2 photoabsorption cross sections (highly structured line) with lower resolution results (dashed line & solid smooth line). Low resolution measurements underestimate cross sections! [Rufus et al., JGR, 2003]

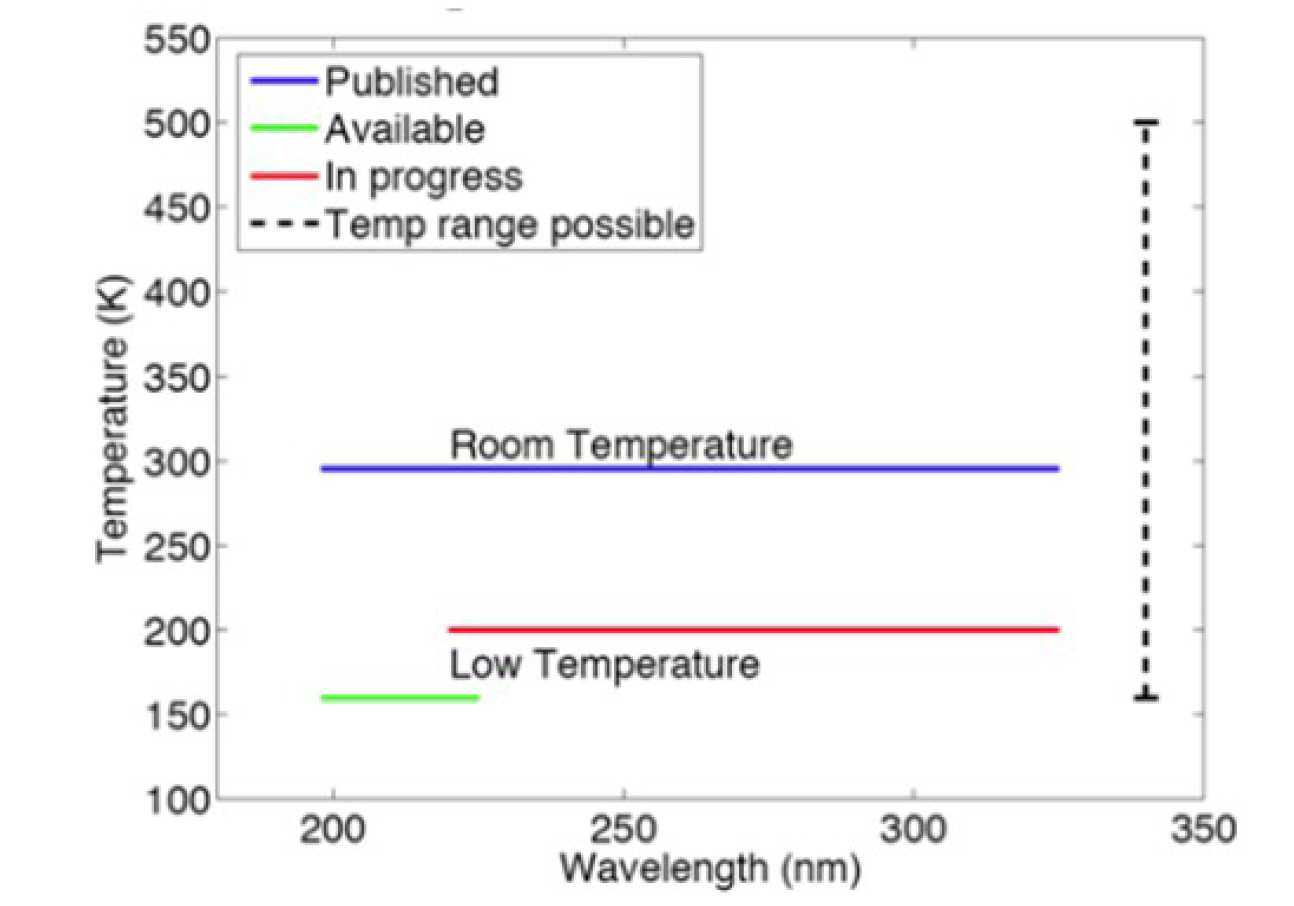

Figure 2 (below):
Status of our laboratory measurements of SO2 photoabsorption cross sections
THEME: Mesosphere/Thermosphere of Venus
Objectives: To characterize atmospheric structure, dynamics, and energetics in Venus' mesosphere and thermosphere
Contact person: Dr. Ingo Müller-Wodarg
The mesosphere extends from around 65 to 110 km. Temperatures have typical values of around 170 K throughout the region. The dayside thermosphere, located above 110 km, is the region of strongest UV/EUV heating with temperatures of 250-350 K, depending on solar activity. Nightside temperatures above 150 km reach 100 K, being colder than the mesosphere and giving the region the name of cryosphere.
We intend to combine observations by SPICAV, VIRTIS and the PFS, which ideally complement one another in terms of altitude coverage and parameters measured (constituent distributions and abundances, thermal structure and some constraints on dynamics) in order to characterize the atmospheric properties and variability, particularly at polar latitudes. Theoretical modelling work will then form a central binding element between the individual instrument observations, allowing us to better understand ongoing physical processes and placing localized measurements into a global context. Similar work is currently being carried out to understand the Cassini observations of Titan's upper atmosphere [Mueller-Wodarg et al., 2006a; Yelle et al., 2006].
Figure 1 (right):
Temperature profile in Venus' atmosphere. Values below 100 km are based on observations by the Magellan Radio Occultation experiment (Hinson and Jenkins, 1995) and the Galileo Near Infrared Mapping Spectrometer (Roos-Serote et al., 1995). Values above 100 km altitude are noon values taken from the Hedin empirical atmosphere model (Hedin et al, 1983), which itself is based upon observations by the Pioneer Venus Orbiter Neutral Mass Spectrometer (Niemann et al., 1980).
Figure 2 (left):
Temperature and wind profile in Titan's thermosphere at the exobase, as calculated by the Titan General Circulation Model of Mueller-Wodarg et al. (2003). The figure is an example of thermospheric structures and dynamics driven by solar forcing alone and illustrates the calculations we intend to carry out for Venus as well.

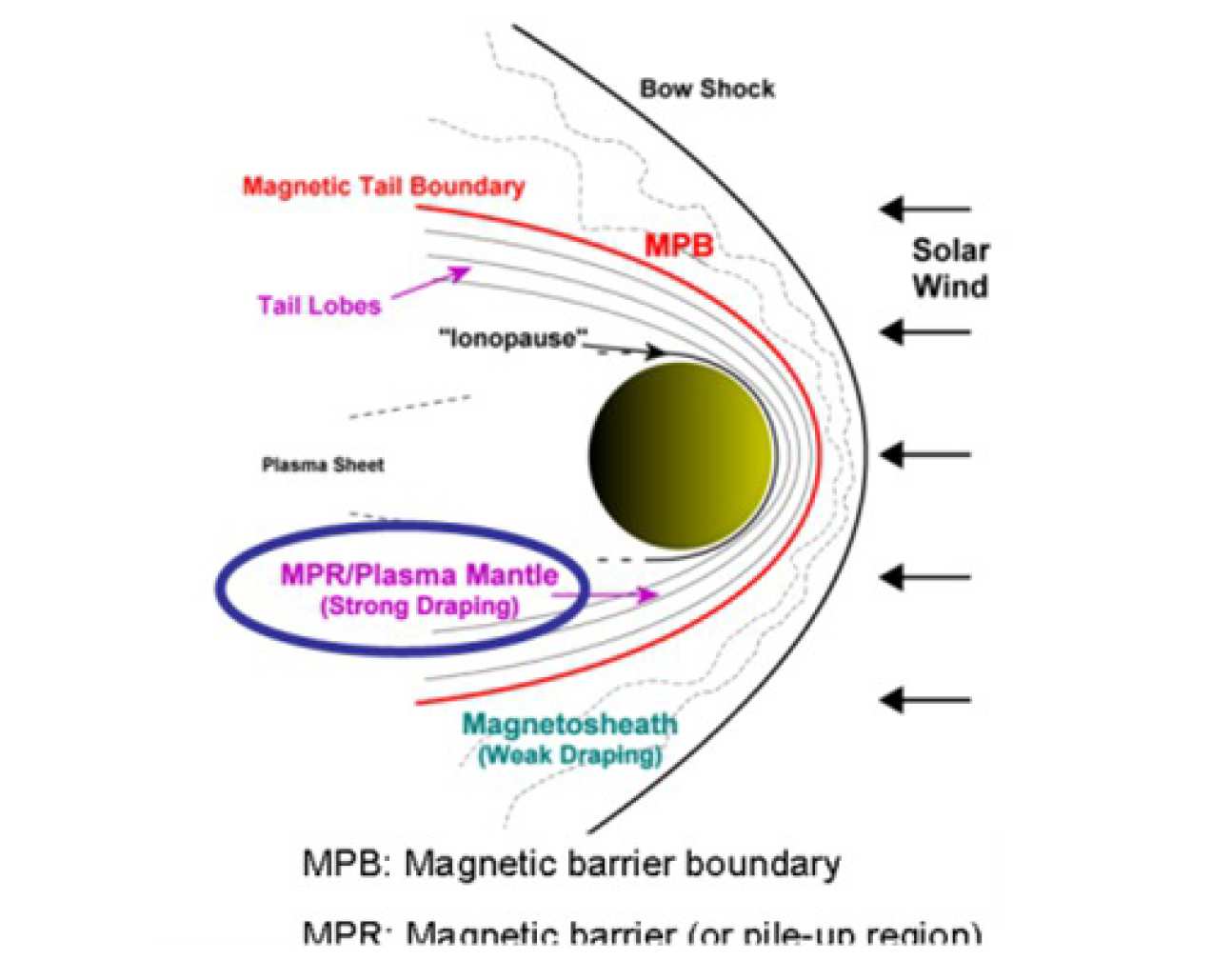

THEME: Magnetized Environment of Venus
Objectives: To study plasma momentum and energy transfer from the Solar Wind to Venus' exosphere and ionosphere as a way to assess the loss of atmosphere due to this interaction.
Contact person: Dr. Cesar Bertucci
We study the consequences of the electromagnetic coupling between the solar wind and the plasma originated from the photoionization of Venus's atmosphere and exosphere. Processes such planetary ion pickup and mass-loading are analyzed using magnetic field data from Venus Express. In particular, we are interested in the structure of the Magnetic Pileup Boundary (MPB), i.e., the outer edge of the so-called magnetic barrier and magnetic tail. This boundary is extremely important as it encloses the region where the planetary plasma escapes downstream from the planet due to the interaction with the solar wind.
