DIC System
Digital Image Correlation (DIC) is used to perform motion and deformation analysis, using a computed 3D coordinate system recorded from a multi-camera system. Interperation of the coordinate system over a period of time can derive measurements for displacements, velocities, accelerations, and surface strain for a sample or system.

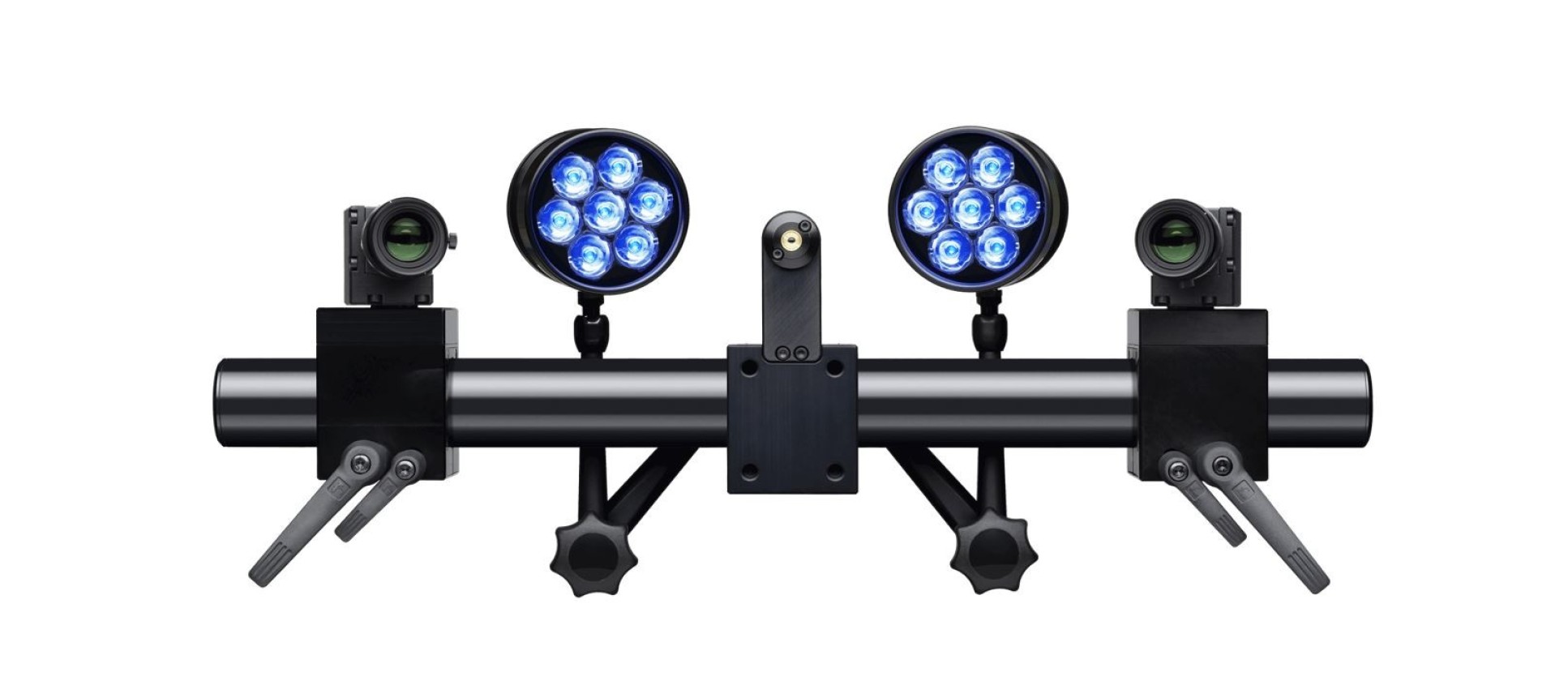

The Test Suite uses a GOM ARAMIS 5M adjustable system, capable of analysing, calculating, and documenting deformations.
Technical Specifications
- Measuring volume: 10 x 8 mm to 5000 x 4150 mm
- Resolution: 2448x2450 pixels
- Maximum frame rate: 15 Hz (29 Hz with binning)
- Exposure time: 0.1 ms to 2s
- Strain range: 0.02 % to >100 %
- Strain accuracy: 0.01 %
