Water-to-cement (w/c) mass ratio is important because it controls the mechanical properties and durability of hardened concrete. When problems occur and/or non-compliance with the specification is suspected, it is often desirable to be able to determine the w/c ratio. There are two existing methods to estimate the w/c ratio, the physico-chemical method described in BS1881:124:1988 and the fluorescence microscopy method described in Nordisk NT361-1999.

The physico-chemical method is known to have low precision, estimated to be within 0.1 (w/c ratio) or greater1, 2, and thus has little practical value. The fluorescence method relies on the use of reference standards for comparison and calibration, which must be made with the same cement and aggregate type, air content and hydration degree, in addition to w/c ratio, as the concrete being examined1, 2. The aim of this study is to develop a new microscopy-based method to estimate the original w/c ratio that overcomes the disadvantages of existing techniques.

**Method**

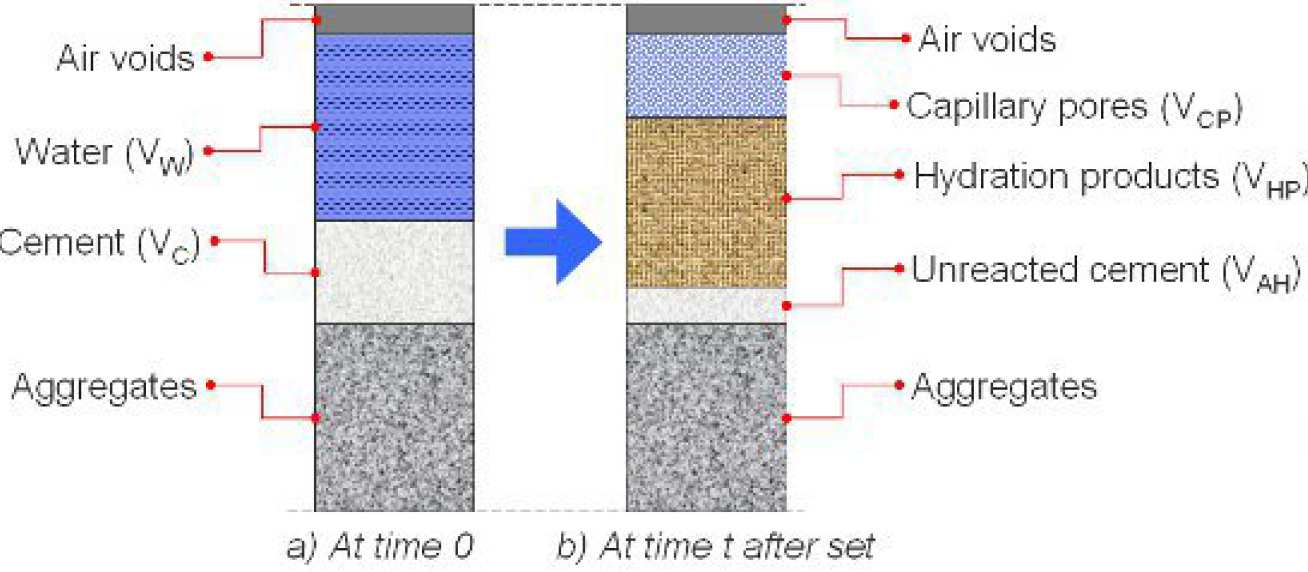

Considering that the volume fractions of aggregates and air voids are invariant with time, and the total shrinkage is small and negligible, we can write the following equation from Fig. 1:

*V _{C}* +

*V*=

_{W}*V*+

_{AH}*V*+

_{HP}*V*

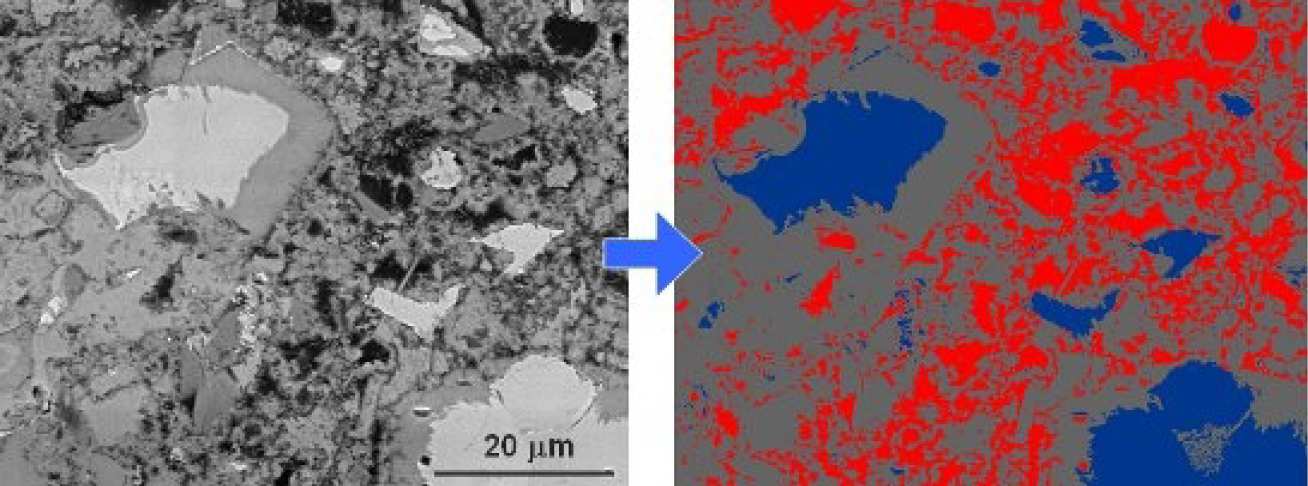

_{CP}V_{AH}, V_{HP} and V_{CP} can be measured with backscattered electron microscopy (Fig. 2) and the results are then used to calculate the cement and water content, w/c ratio and degree of hydration:

Where *ρ _{C}* is the specific gravity of cement and

*δ*is the volumetric increase of solids during hydration, which is approximately equal to two. The value of dV can also be calculated from the cement composition

_{V}^{3}.

**Results**

We have tested the method on a wide range of concretes, mortars and pastes^{4, 5, 6}. The mix variables include w/c ratio (0.25-0.70), cement content (300-1750kg/m^{3}), aggregate content (40-70% vol.) and curing age (3-90 days).

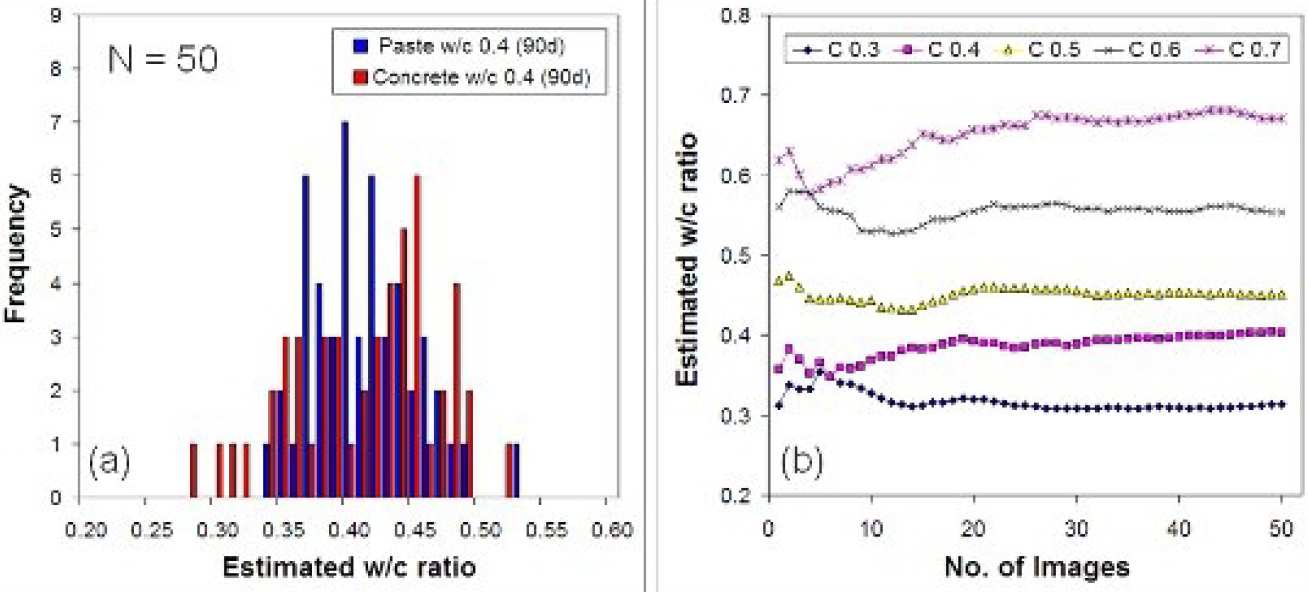

Fig. 3a shows the variation in the estimated w/c ratio for each image for the 0.4 w/c ratio mixes. It can be seen that the spread in local w/c ratio is higher in concretes compared to pastes. This is due to bleeding effects and presence of aggregates that increases the heterogeneity of the concrete microstructure. However, the results tend to converge when a representative number of images are analysed and averaged (Fig. 3b).

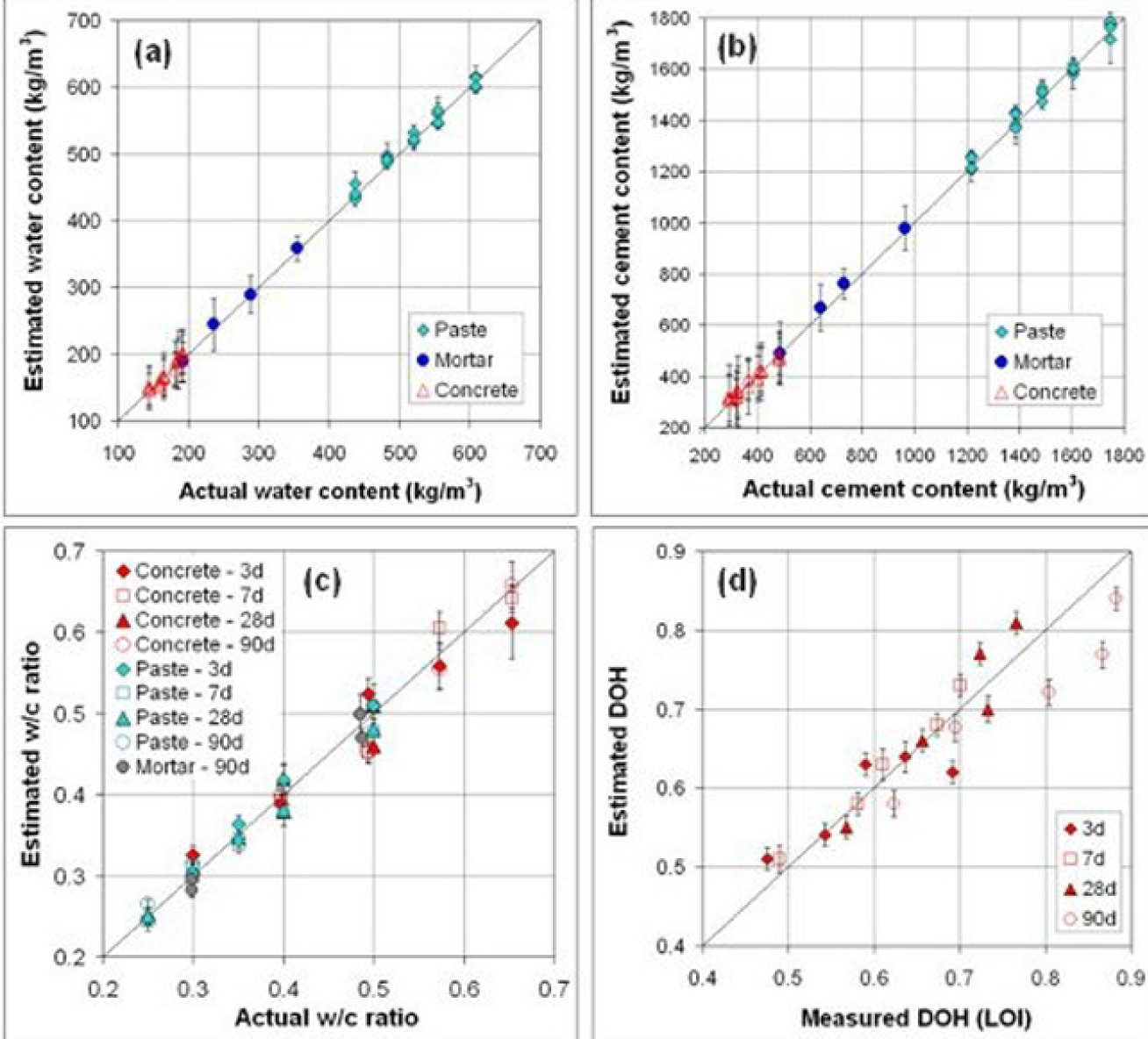

Fig. 4 compares estimated values against the actual values for all samples. The error bars indicate 95% confidence interval. The results show a good agreement between the measured and actual values. The percentage estimation errors for cement content, water content, w/c ratio and degree of hydration ranged from -3.2 to 10.2%, -2.3 to 5.8%, -8.6 to 8.4% and -11.3 to +7.2% respectively. The errors do not appear to be influenced by either the mix proportion or curing age.

### Conclusions

A new method that determines the cement content, water content, w/c ratio and degree of hydration of hardened Portland cement concrete with unknown mix proportion is presented. The method is based on measuring the volume fractions of unreacted cement, hydration products and capillary pores in the concrete using backscattered electron microscopy.

The method has the advantage that it is objective, reproducible and does not require comparison to reference standards or calibration curves. The method has been tested on pastes, mortars and concretes having a wide range mix proportions and age with encouraging results. The error in estimating the free w/c ratio was found to be less than 0.025 for pastes, and less than 0.05 for mortars and concretes.
