Leica SP8 - STELLARIS 5 Inverted Light Sheet Confocal Microscope

pic1





Advantages of this microscope

  • Live confocal imaging with high sensitivity
  • 4 internal detection channels equipped with Power HyD S
  •  6 Laser (Solid State) - 405, 448, 488, 514, 561, 638nm
  • White Light Laser 485-685nm Super Continuum - Tau Sense Modality
  • Motorised stage - slide, dish and multiwell formats
  • Z-Galvanometer Stage
  • Fully Integrated Light Sheet modality
  • sCMOS Camera - DFC9000 GTC DLS

Confocal Objectives

  • HC PL APO 10x/0.40 CS2
  • HC PL APO 20x/0.75 CS2
  • HC PL APO 40x/1.30 Oil CS2
  • HC PL APO 63x/1.40 OIL CS2

Light Sheet Objectives

  • HC PL FLUOTAR 5x/0.15 IMM DLS
  • HC APO L10x/0.30 W DLS
  • HC APO L 20x/0.50 W DLS
  • HC FLUOTAR L25x/0.95 W DLS

Working distances

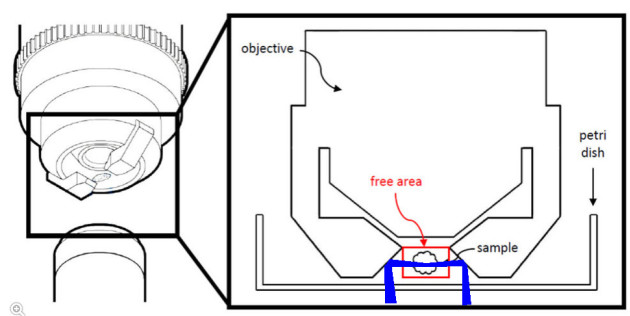

Availible combinations of mirror cap (TwinFlect) and objectives for use in lightsheet experiments

objectives

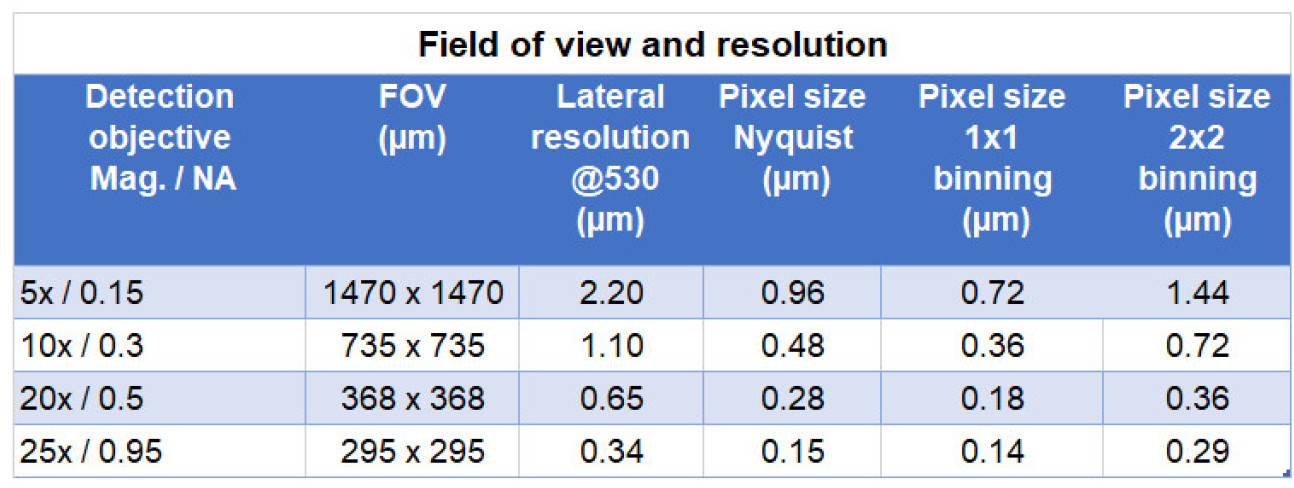

fov

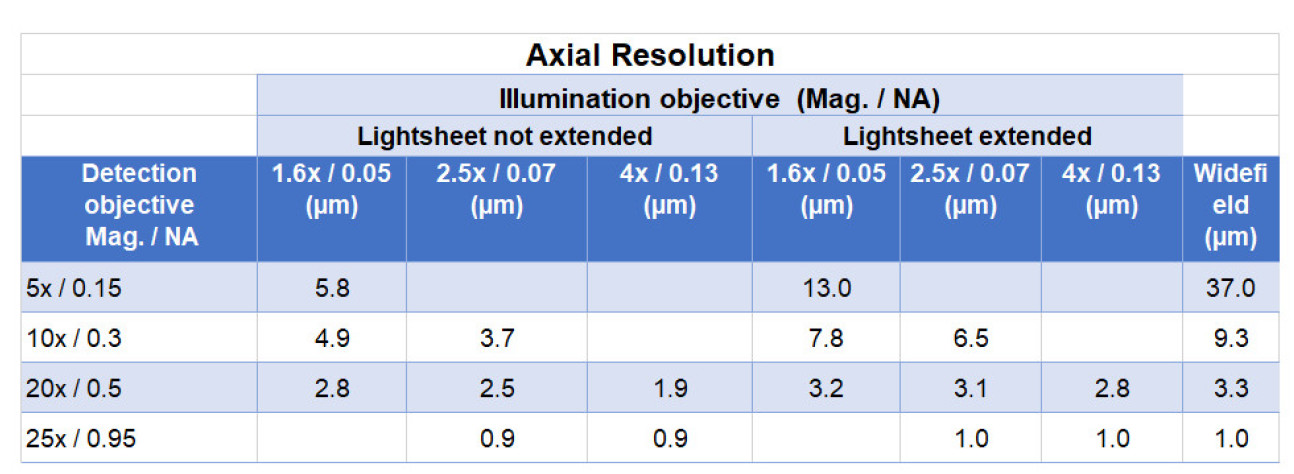

axialRes

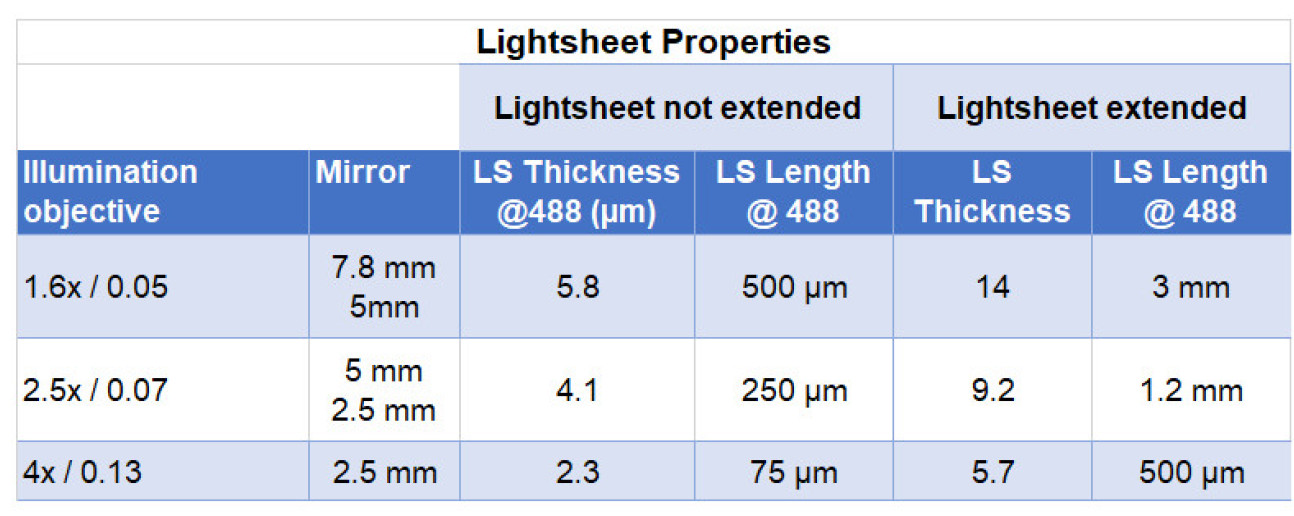

LSproperties






Location

Sir Alexander Fleming building, SAF 410


Quickstart guides

 Quickstart guide Confocal LS1 (pdf)

Tiling and Multi-position Imaging (PDF)

Quickstart guide - Light Sheet LS1 Leica Stellaris Inverted (PDF)

Sample Preparation

Light Sheet Sample Preparation (PDF)

Using U-Shaped Glass Capillaries for Sample Mounting

LS1 Live Imaging Guide (PDF)

Leica Webinar

The Best of Both Worlds: Combining Light Sheet and Confocal Microscopy

Leica Objectives


Offline software
