The laboratories of the Department of Civil and Environmental Engineering provide state-of-the-art facilities and are amongst the most up-to-date and best equipped in Europe. The laboratories house a wide range of facilities available for research, teaching and consultancy. We have five labs, all of which have been fully rebuilt or substantially refurbished within the past seven years. In addition, the Department has outstanding computing facilities. These complement the facilities provided by the College and provide a very supportive environment for research and study.

Laboratory facilities A-Z

Biaxial Internal Reaction Frame

Compression Rig + Hoek-type Triaxial Cell

Compression Testing Rig

Computing Facilities

Concrete Durability Equipment (Exposure Lab)

Concrete Durability Equipment (Microstructure Lab)

Concrete Durability Equipment (Transport Lab)

Concrete Durability Group (Chemistry Lab)

Concrete Durability Lab (Porosity Lab)

Creep Rigs


Data Acquisition Equipment

Dynamic/Pseudodynamic Testing Equipment

Fixing Rig

Flumes and Wave Tanks

Heavy Scale Testing Frames

High Temperature Strength Testing Rig

High-stress Triaxial Apparatus

Hollow Cylinder Apparatus

Impact Rig

MAYES Tension/Compression Machine


Oblique Fixing Rig

Random Wave Generators

Ring Shear Apparatus

Roger Perry Environmental Engineering Laboratory

Scanning Electron Microscope

Servo Hydraulic Loading Equipment

Strong Floors

Tension/Compression Rig

Triaxial Testing Equipment

Laboratory facilities A-Z

Research Spotlights

The drop downs below highlight how our laboratory facilities have been used to provide experimental data to validate research findings.

Spotlights: How the laboratories have been used to provide experimental data to validate research findings

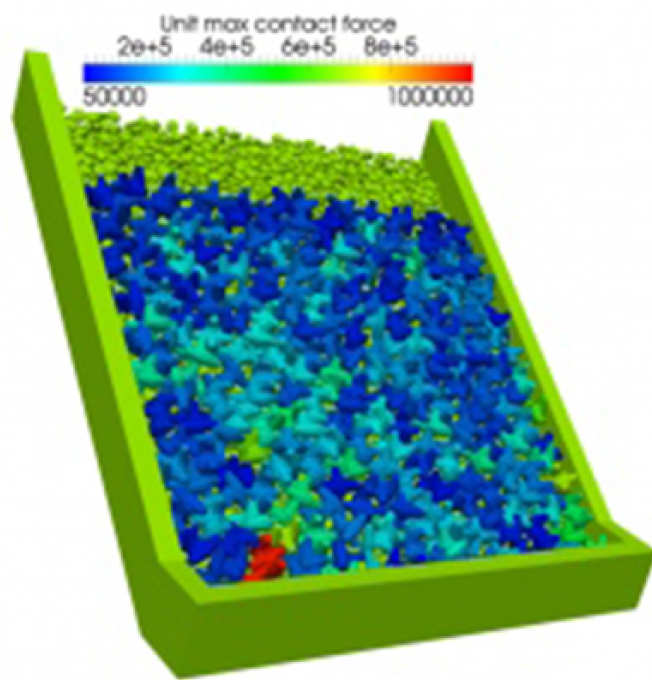

Massive concrete armour units are used extensively around the world in harbour breakwaters and coastal defences.  A range of experiments are being carried out in the Structures Laboratory, to support the development and validation of computational methods (in the Department of Earth Science and Engineering ) aimed at predicting the behaviour of multi-body systems comprising such units in the loading regimes typically experienced in reality. In-elastic models including plastic and fracture behaviour are being introduced into the computational models.

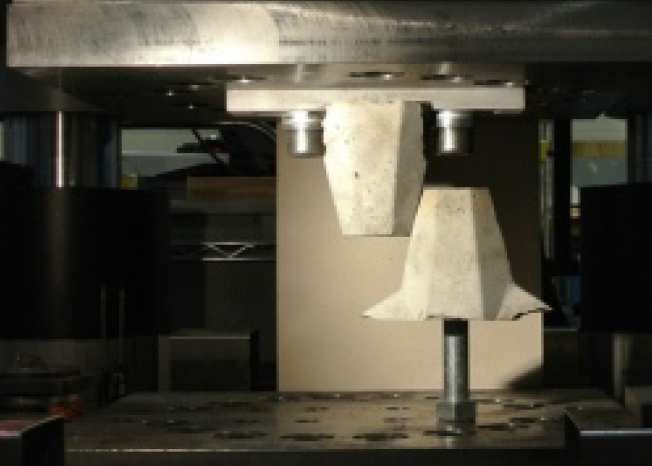

The real armour units in use today have a range of shapes and are typically 2.5 to 4.5m high, weighing between 15 and 60 tonnes.  The laboratory test programme is using scale models (around 1/8 and 1/50).  For example, these 350mm high units will be loaded in compression in a 3500KN capacity servo-hydraulic test rig, in both four-point and six-point loading configurations.

Individual “arms” have been cast onto rigid mountings to allow the frictional and damage characteristics of interactions between units to be assessed.


Department of Civil and Environmental Engineering;

Earth Science and Engineering;

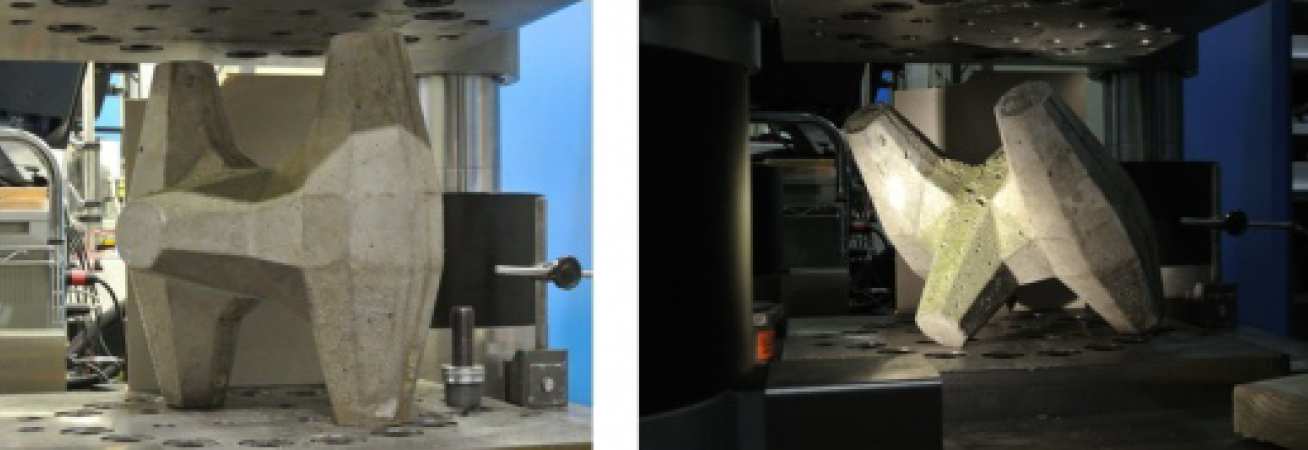

Non-destructive and loading to destruction tests in 4-Point and 6-Point loading (350mm units)
Non-destructive and loading to destruction tests in 4-Point and 6-Point loading (350mm units)

In practice, when casting concrete elements on site, it is difficult, if not impossible, to avoid having any form of restraint whatsoever, which is a potential cause of cracking.  Example applications include (but are not limited to) reinforced concrete (RC) walls cast on stiff foundation bases (base restraint) and RC wall panels cast between previous pours on a stiff base (combined edge and end restraints) such as in retaining walls, liquid-retaining tanks and underground structures including tunnels.

Cracking in RC structures is problematic not only because it jeopardises aesthetics and durability but also because it may cause water leakage problems in liquid-resisting structures.  Crack widths may, however be controlled by steel reinforcement.

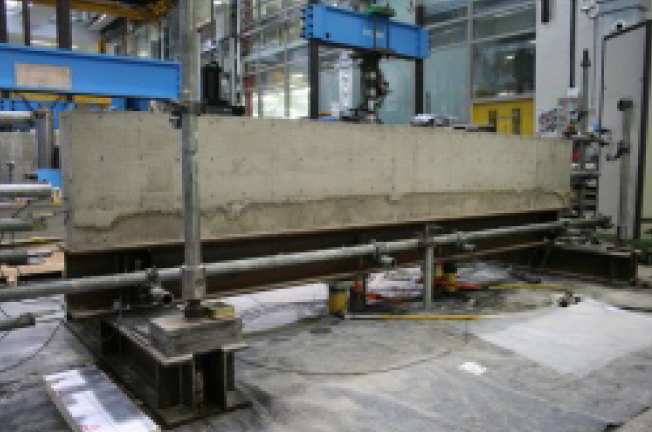

A series of tests are carried out in the Structures Laboratory within the Department of Civil and Environmental Engineering at Imperial College London to investigate parameters affecting cracking and crack widths in walls with base restraint and with a combination of base and end restraints.  Tested walls are typically 3.5m long and vary in height between 0.5 and 0.75m.  Steel fixing as well as concrete mixing and casting is carried out by qualified laboratory technicians in the Structures Laboratory.  Following casting, the RC walls are monitored for cracking during early age thermal contraction and long term shrinkage.  In addition, quality control tests such as cube and cylinder strength tests are also carried out within the Structures Laboratory.

Temperatures are constantly monitored using thermocouples cast within the concrete.  Transducers monitor horizontal and vertical wall displacements whereas DEMEC strain gauges and electric strain gauges are used to monitor compressive and tensile strains in the RC wall and restraining steel beam.  Cracks are monitored and crack widths measured using a crack width microscope.

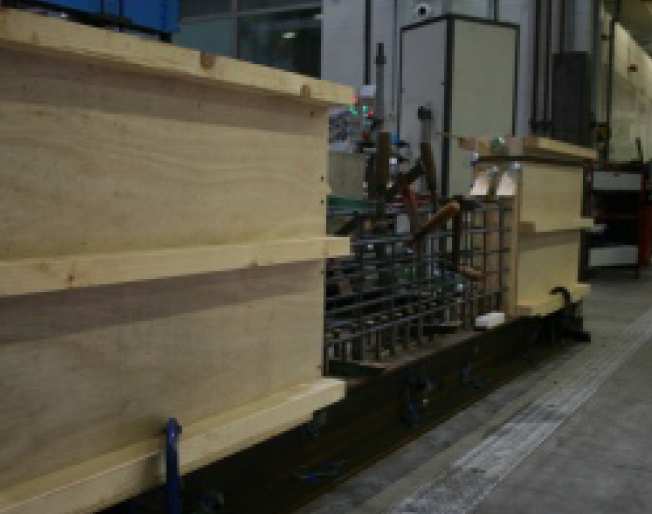

Preparation for casting the ends of a wall with combined restraint

Test results are being used to validate numerical models in ADAPTIC.  Once validated, more parameters may be investigated using these validated models.

  • PhD candidate: Marianna Micallef
  • Laboratory technician: Leslie T. Clark
  • Supervisors: Dr Robert L. Vollum; Professor Bassam A. Izzuddin
  • Project funding: Laing O’Rourke
