The Bloodbot Project


The Bloodbot is an active robot designed to take blood samples from the ante-cubital fossa (ACF) which is the area in the crease of the arm where the veins are close to the surface of the skin. It is the most common place from which to take blood samples.

The pattern of veins in the area varies from individual to individual.

The Bloodbot identifies the location of a suitable vein by pressing a probe against the surface tissue of the ante-cubital fossa and measuring the force on the probe. The difference in the characteristics of the tissue from its surroundings, in response to the applied force, indicates the presence of a vein.

Once a suitable vein has been found, it inserts a needle under force control. When the needle penetrates the vein (identified by its force/position profile), the control system prevents further insertion, thus avoiding overshooting the vein.


Initial tests were carried out on a phantom made by Limbs and Things, designed to accurately simulate the behaviour of the tissues of the ante-cubital fossa.

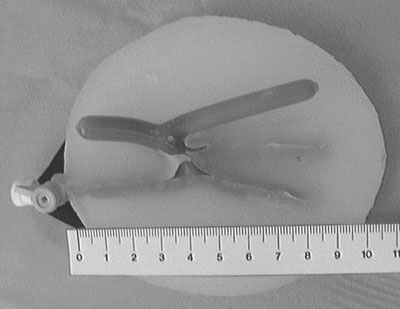

It is a pad on which there is a layer of jelly in which rubber tubes are embedded. The tubes are filled with artificial blood. The whole pad is covered by a latex membrane, simulating the skin. The picture shows the 'skin' removed and some of the tubing exposed.

Initial tests showed that it was feasible to develop a special-purpose robot to take blood from the forearm.

The Bloodbot

The Bloodbot has three powered (linear motion) axes and one unpowered (rotational) axis. All the motors are inexpensive stepper types.

The first axis moves a carriage up and down, so that it goes towards and away from the arm that is strapped in under it. This carriage is used to hold either a blunt probe (for finding a vein) or a syringe and needle. A piezo-resistive force sensor is mounted on the carriage to measure the force on the probe or needle.

The second axis moves the carriage across the width of the arm. This enables the probe to press in a series of places along the width of the arm.

The third axis, which is unpowered, enables a human operator to tilt the robot. This is so that, once a vein has been found, the needle can be inserted into the arm at the correct angle.

The fourth axis moves the whole robot along the length of the arm. This was designed to compensate for the slight difference between where the probe has identified a vein, and where the needle enters the skin, once the robot has been tilted.

Identifying the position of a vein

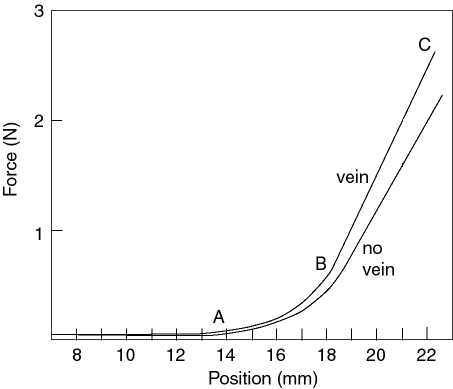

The graph shows the way the force changes with position as a probe is pressed against the surface of the skin.

At point A, the probe starts pressing against the skin. From B to C the force/position is linear and the gradient of the line represents the elasticity of the tissue. The gradient is different if a vein is present.

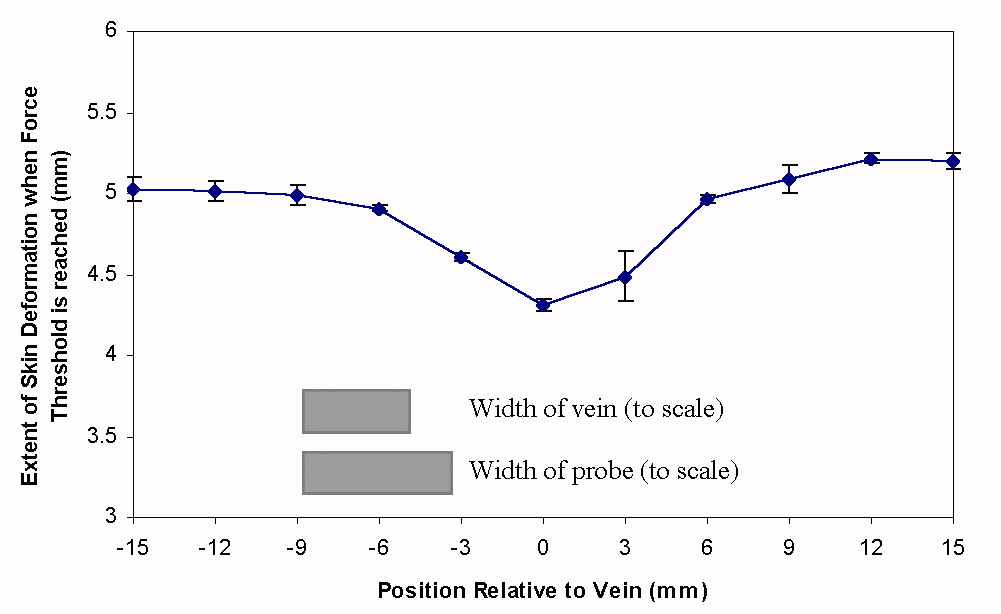

Repeated measurement of the elasticity were taken along a line crossing the location of a vein. The graph shows that the system can accurately (to within a millimeter or two) identify the location of the vein.



Repeated measurement of the elasticity were taken along a line crossing the location of a vein. The graph shows that the system can accurately (to within a millimeter or two) identify the location of the vein.

Inserting a needle without overshooting

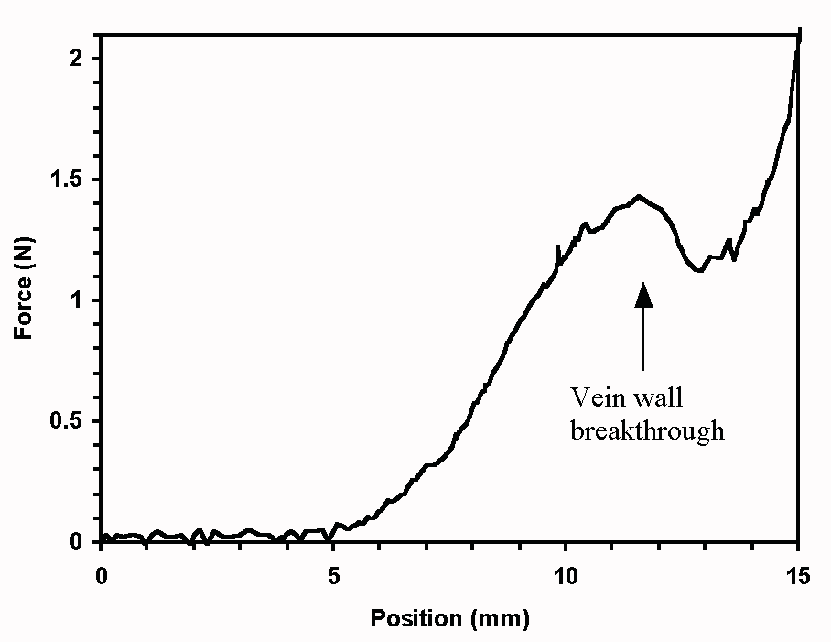

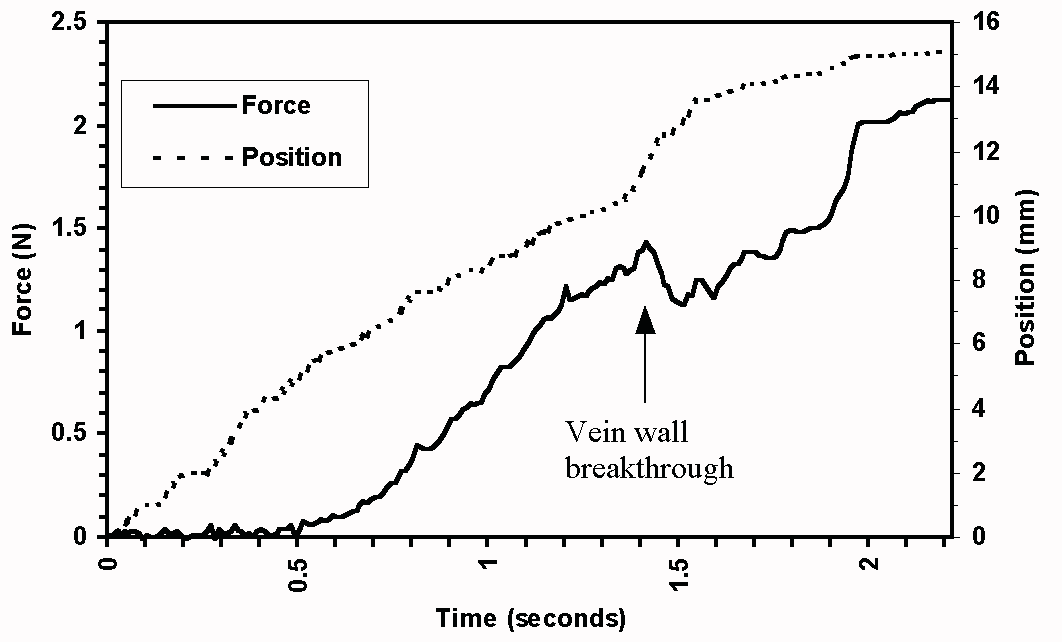

The force on a needle was measured as the needle was inserted throught the skin and into the vein. Vein breakthrough is indicated by a force drop after a peak. The Bloodbot recognises this feature and halts the insertion of the needle.

Testing the system

The system was tested on the phantom and the results obtained were consistently good.

The ideal situation would have been to test the system on a wide range of patients. However, because of the difficultly in obtaining permission to test medical devices, the system was tested on only one human patient. The vein location phase was tested on the patient and the vein was located correctly about 78% of the time. The needle insertion was also tested and worked. This test was not repeated, so as to avoid multiple scarring.

More tests need to be carried out on a wider range of patient types (elderly, infants, obese, etc.) to more accurately determine the performance of the robot and to enable further developments to be carried out.
